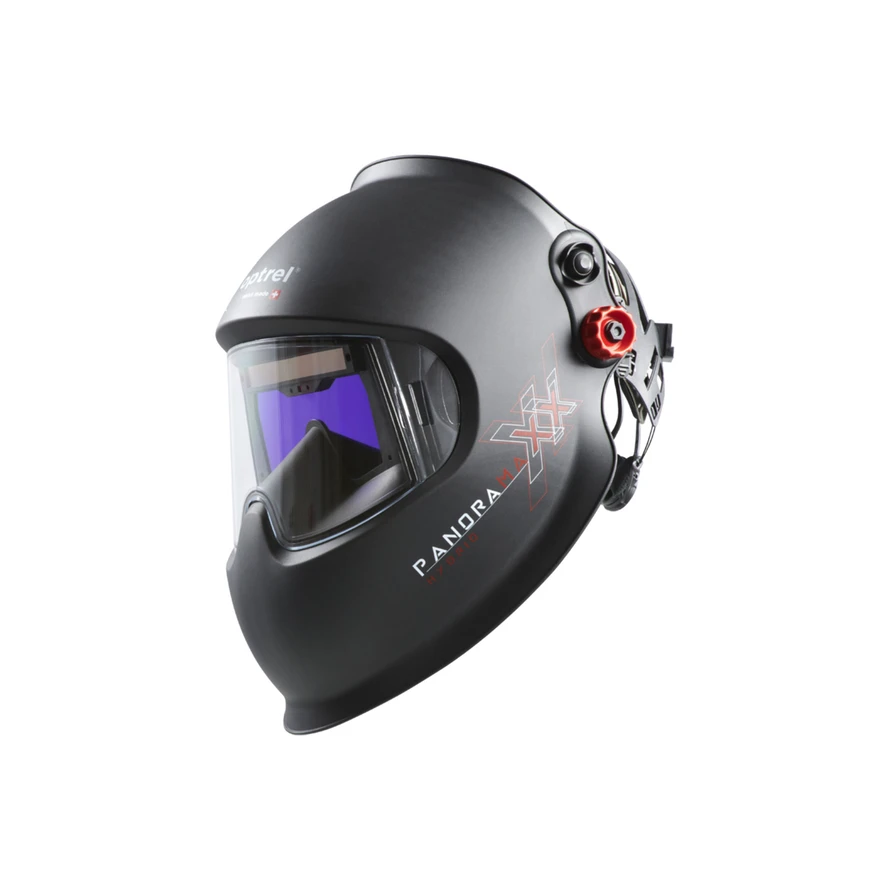

Optrel® Panoramaxx Hybrid Laser Welding Helmet

Laser protection meets automatic welding technology.
The Optrel® Panoramaxx Hybrid Laser Welding Helmet combines certified laser protection with Optrel's advanced auto-darkening welding technology. Designed for laser welding, laser-assisted manufacturing, and traditional welding applications, it provides unmatched visibility, comfort, and protection in a single helmet.

Featuring Optrel's panoramic XXL field of view, ShadeTronic® automatic shade adjustment, True Color viewing, and rechargeable battery technology, the Panoramaxx Hybrid is engineered for professionals who demand maximum performance and versatility.

Why Professionals Choose the Panoramaxx Hybrid

• Laser & Welding Protection: One helmet for laser and traditional welding applications
• Panoramic XXL View: Up to 6x larger field of vision than standard welding helmets
• Automatic Shade Control: ShadeTronic® technology adjusts shade levels automatically
• True Color Vision: Enhanced visibility and color recognition while welding

Key Features

• Laser protection for 1030–1100 nm laser applications
• Panoramic XXL field of view
• ShadeTronic® automatic shade adjustment
• FadeTronic® adjustable light-to-dark transition control
• True Color viewing technology
• Five sensor detection system
• Grinding mode
• Sensitivity adjustment controls
• Delay function settings
• Anti-glare technology
• IsoFit® headgear system
• Hard hat adapter compatible
• Position Locker system
• Patented Excenter adjustment mechanism
• Lightweight design for extended use

Shade & Lens Performance

• Inactive State: Shade 3
• Manual Welding Shades: Shade 4–9
• ShadeTronic® Range: Shade 5–13
• Optical Classification: EN379 1/1/1/2

Laser Protection

• Laser wavelength range: 1030–1100 nm
• Maximum UV/IR protection at all shade levels
• Complies with CE, ANSI Z87.1, CSA Z94.3, AS/NZS 1337.1, and AS/NZS 1338.1 standards

Applications

• Laser welding
• Laser-assisted manufacturing
• MIG/MAG (GMAW)
• TIG Welding (GTAW)
• Stick Welding (SMAW)
• Flux-Cored Welding
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grinding Operations

What’s Included

• Panoramaxx Hybrid Laser Welding Helmet
• Optrel® IsoFit® Headgear
• Micro-USB Charging Cable
• Storage Bag
• Front Cover Lens
• Operating Instructions
• Warranty Documentation

Warranty

• 2-Year Manufacturer Warranty
• Additional 1-Year Warranty Extension Available Upon Registration

Frequently Asked Questions

What is the difference between the Panoramaxx Hybrid and passive laser helmets?
The Hybrid combines laser protection with Optrel's auto-darkening welding technology, allowing it to be used for both laser and conventional welding processes.

What laser wavelength range is supported?
The helmet is certified for laser applications in the 1030–1100 nm range.

Does the helmet automatically adjust shade levels?
Yes. ShadeTronic® technology automatically adjusts the shade level based on welding conditions.

Can it be used for grinding?
Yes. The Panoramaxx Hybrid includes a dedicated grinding mode.

Is it rechargeable?
Yes. It features a rechargeable Li-Polymer battery and Micro-USB charging capability.
