Description

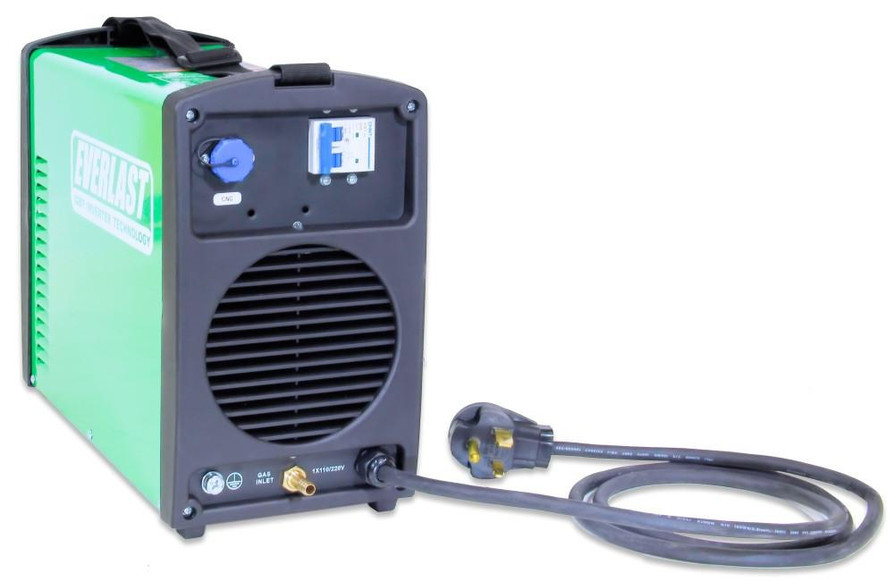

PowerPlasma 52i

The PowerPlasma 52i is a compact yet powerful plasma cutter, incorporating the latest IGBT inverter technology. As the successor to the popular PowerPlasma 50S series, it continues to offer excellent affordability and performance. The 52i is fully redesigned with a digital architecture, reducing circuit complexity and enhancing reliability.

Key improvements include an air-pressure guide system with a digital display and LED indicators to optimize air pressure settings based on the mode in use. It also features digital control over Post-Flow, allowing users to adjust the flow time for different job requirements, preserving consumable life for long cuts or adjusting for shorter, intermittent cuts.

The large, bright digital displays offer improved visibility, even in bright conditions. Additionally, the PowerPlasma 52i introduces a gouge feature and a separate CNC mode. Its blow-back torch design includes two pilot arc modes—one for continuous re-lighting when cutting expanded metal, and a tip saver mode to limit pilot arc time and extend consumable life.

Features:

Dual Voltage 120/240V for maximum portability
Adjustable Post-Flow timer extends consumable and torch life
Large, Super bright digital displays for Amps, Air Pressure, and Post Flow
Digital Air Pressure Setting Guide adapts programming for different cutting modes
Separate Gouge and CNC modes.
Euro style "Central" quick connect torch adapter
Improved Consumable life
Features the Italian designed "back striking" iPT 60 torch with improved cutting capacity and improved consumable life
Inexpensive consumables can usually be bought locally
60% duty cycle is fit for commercial use
Clean cuts and less bevel with the iPT 60 torch and new digitally controlled cutting arc.
Self-Diagnosing mode (Error Code)
Consumables in Place Indicator.
Pilot arc tip saver feature limits pilot arc activity to 3 seconds. Continuous Pilot arc mode is standard as well.
Can be used with 8500 watt clean power generators (less than 5% total harmonic distortion)

Comes Complete With:

IPT-60 Hand Held Torch with 14 ft. cable and Euro quick-connect Central connector
Ground Clamp with 25 Dinse connector
AW3000-02 Air Filter / Water Trap (gauge is not included)
Consumable starter kit
PigTail Adapter 120V/240V

Recommended Areas of Use:

Home/Hobby
Metal Art
Farm/Ranch
Contstruction sites
Portable Repair
Fabrication
Small CNC tables with 1/4" or less capacity is needed continuously
Anywhere Oxy Fuel cutting is impractical, slow, expensive, or otherwise restricted or undesirable.

Recommended Metals:

Steel
Stainless
Aluminum
Titanium
Virtually all types of metal

Minimum/Maximum:

Up to 1/2" daily use @ 15-20 ipm (240V)
Up to 3/4" clean cut @ 8-12 ipm (240V)
Up to 15/16" severance cut @ 3-5 ipm (240V)
Up to 1/8" daily use @ 15 to 20 ipm (120V)
Up to 3/16" clean cut @ 8 to 12 ipm (120V)
Up to 5/16" severance cut @ 3-5 ipm (120V)
Max. Pierce 3/8" (240V)
Max Pierce 3/16" (120V)
Minimum practical cut 24-28 gauge with standad cutting tips

Plasma cutting capacity is affected by several factors. Ideal cutting conditions require dry air, new consumables, proper air pressure etc. Quality of cut depends upon consumable orifice size, standoff height, and travel speed. Reduce consumable orifice size for best quality cuts on thin metals. Units are shipped with starter kit of consumables designed for 40-50 amps cutting range. Minimum cutting gauge is virtually unlimited, but kerf will be too wide if standard cutting tips are used. For best results, use a smaller diameter orifice for lighter gauges.

Notes:

When using the CNC port, with a plasma table, the unit should be limited to 40 amps which is the 100% duty cycle level of the machine if it is to be used continuously.
A separate air dryer must be provided by the customer to prevent torch damage, and excessive consumable wear.
The unit includes a regulator/water trap, but is not designed to remove all water or moisture.
When used with a generator, the generator must be certified by its manufacturer to produce "clean" power (5% or less THD). Use a generator rated for 8500 surge watts if used on 240V. For 120V, a generator with a minimum of 4500 watts should be used.
For use with 120V, the cutting tip (nozzle) must be changed to a smaller diameter nozzle for proper operation under 40 amps. Lowering air pressure will destabilize the arc.

*Free Shipping* Within The Contiguous United States. For International Shipments, Customer Pays All Shipping, Taxes, and Fees.

Specifications:

Part #	EVL-PP-52i
Type	IGBT
Output Amp/Volt Range	120V: 20A/88V-25A/90V 240V: 20A/88V-50A/100V
Voltage/Phase	DUAL VOLTAGE 120/240 1 PHASE
Max Inrush (I1MAX) Amps	120V: 32.1A 240V: 35.8A
Maximum Rated (I1EFF) Input Amps	120V: 24.9A 240V: 27.9A
OCV	200V
Duty Cycle At Rated Amps/Volts	120V: 60% @ 25A/90V 240V: 60% @ 50A/100V
Arc Start Type	Blow Back (Piston type)
PilotArc	Yes
Torch Type	Italian designed iPT 60
CNC Interface Port	Yes
Adjustable Post Flow Timer	Yes
Gouging	Light or occasional
Recommended Cutting Air Pressure	72-75 psi
Recommended Compressor Capacity	5.0 cfm or better with 25 gallon tank
OK-to-Cut Indicator/Low Air Pressure Safety	Yes
Weight	32 lbs
Dimensions (LxWxH)	16 in x 7 in x 13 in
