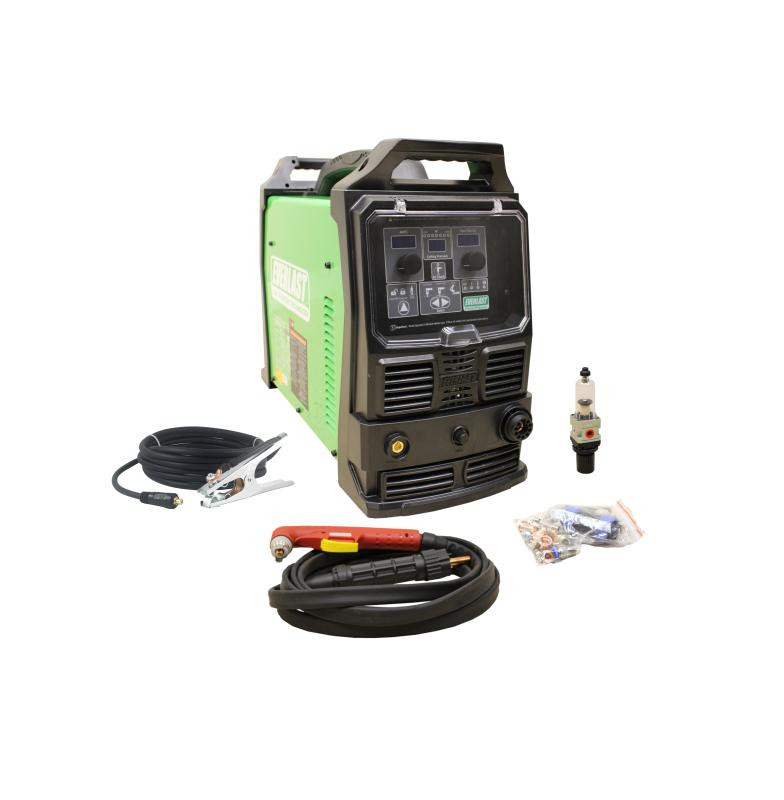

Everlast PowerPlasma 62i – 60 Amp Plasma Cutter with Gouge & CNC Modes

Clean, reliable plasma cutting for fabrication, repair, maintenance, and CNC applications.
The Everlast PowerPlasma 62i is a commercial-class plasma cutter built for welders and fabricators who need dependable cutting power, easy setup, and strong consumable life. With a digitally controlled inverter platform, blowback pilot arc, gouge mode, and dedicated CNC capability, it is designed to handle daily cutting on clean, rusty, painted, and expanded metals.

The large digital display makes amperage, air pressure, and post-flow settings easy to read, while the color-coded air-pressure guide helps operators quickly dial in the correct setup for each cutting mode.

Why Fabricators Choose the PowerPlasma 62i

• Strong Cutting Capacity: Designed for regular cutting up to 3/4", clean cuts up to 1", and severance cuts up to 1-1/4".
• Pilot Arc Performance: Cuts through rust, paint, and surface contamination without direct torch contact.
• Built-In Gouging: Remove old welds, defects, and unwanted metal without switching machines.
• CNC Ready: Includes a dedicated CNC mode and 12-pin CNC connection for plasma-table integration.
• Easy Air Setup: Digital pressure display and LED guide simplify air-pressure adjustment.
• Commercial Duty Cycle: Rated at 60% duty cycle at 60 amps for demanding shop work.

Key Features

• Digitally controlled inverter design
• Up to 60 amps of plasma cutting output
• Commercial-class 60% duty cycle at 60 amps
• Bright digital display for improved visibility
• Digital air-pressure readout
• Color-coded LED air-pressure guide
• Dedicated plasma gouging mode
• Dedicated CNC cutting mode
• 12-pin CNC connection
• Blowback pilot arc for fast, reliable starting
• Improved cutting on rusty, painted, or dirty metal
• Three-second pilot-arc tip-saver function
• Adjustable post-flow timer with digital display
• Self-diagnostic system
• Digitally controlled IGBT power components
• Euro-style torch connector for easy torch replacement
• Compatible with an optional CNC machine torch

Cutting Capacity

• Recommended Daily Cutting: Up to approximately 3/4" at 15–20 IPM
• Maximum Clean Cut: Up to approximately 1" at 8–12 IPM
• Maximum Severance Cut: Up to approximately 1-1/4" at 3–5 IPM
• Maximum Pierce Capacity: Up to approximately 1/2"

Actual cutting speed and capacity depend on material type, air quality, consumable condition, torch height, input power, and operator technique.

What’s Included

• IPT-60 Handheld Plasma Torch with 14' Cable and Euro-Style Central Connector
• Ground Clamp with 10' Cable and 25 Series DINSE Connector
• AW2000-02 Air Filter/Water Trap
• Air Hose
• WEiPU SP21 12-Pin CNC Connector
• Five IPT-60 Electrodes
• Five IPT-60 1.1mm Nozzles/Tips

Note: The supplied air filter/water trap does not replace a dedicated compressed-air dryer.

Ideal Applications

• Commercial fabrication
• Automotive and muffler shops
• Motorsports fabrication
• Farm and ranch repair
• Factory maintenance
• Shipyards
• Pipeline and field work
• HVAC fabrication
• Home and professional shops
• CNC plasma tables
• Weld removal and gouging

Recommended Materials

• Steel
• Stainless steel
• Aluminum
• Copper
• Titanium
• Nickel and nickel alloys
• Cast iron
• Most electrically conductive metals

Blowback Pilot Arc

The blowback pilot arc allows the PowerPlasma 62i to start without touching the torch tip directly to the workpiece. This helps improve cutting performance on painted, rusty, dirty, or expanded metal while reducing startup difficulty.

The built-in three-second tip-saver feature shuts off the pilot arc when no cutting arc is established, helping prevent unnecessary consumable wear.

Gouging Capability

The dedicated gouge mode allows the operator to remove unwanted weld metal, surface defects, and damaged sections without cutting completely through the base material. It is useful for repair, rework, weld preparation, and maintenance applications.

CNC Plasma Compatibility

• Dedicated CNC operating mode
• 12-pin CNC connection included
• Compatible with an optional machine torch
• Suitable for CNC plasma tables when properly configured

Important: Verify that the plasma table, torch-height control, wiring, and machine torch are compatible before installation.

Compressed-Air Requirements

Clean, dry compressed air is essential for cut quality, torch life, and consumable life. The included water trap helps remove some moisture, but it is not designed to fully dry the air supply.

• Install a separate inline air dryer in addition to the supplied water trap
• Drain the compressor and filters regularly
• Use clean, oil-free air whenever possible
• Confirm pressure and flow requirements in the machine manual

Operating the cutter with wet or contaminated air may shorten consumable life, reduce cut quality, and damage the torch.

Generator Requirements

• Use only generators certified by the manufacturer as producing clean power
• Total harmonic distortion must be 5% or less
• Minimum recommended generator capacity: 10,000 surge watts
• For best performance, a generator around 11,000 watts or greater may be preferred

Using an undersized generator or one that does not meet clean-power requirements may damage the plasma cutter and void warranty coverage.

Who Is the PowerPlasma 62i Best For?

The PowerPlasma 62i is a strong choice for fabricators who need more capacity than an entry-level plasma cutter but still want a portable and easy-to-use machine. Its combination of pilot arc, gouging, CNC support, digital air-pressure guidance, and commercial duty cycle makes it well suited for daily shop use, field repair, maintenance, and light CNC production.

Frequently Asked Questions

How thick can the PowerPlasma 62i cut?
It is recommended for regular cutting up to approximately 3/4", clean cuts up to approximately 1", and severance cuts up to approximately 1-1/4".

Can it cut painted or rusty metal?
Yes. The blowback pilot arc helps establish the cutting arc through paint, rust, and surface contamination.

Does it have a gouging mode?
Yes. The dedicated gouge function can remove old welds, defects, and unwanted metal without cutting completely through the workpiece.

Can I use it with a CNC plasma table?
Yes. The unit includes a dedicated CNC mode and 12-pin CNC connector. An optional machine torch and compatible table controls may also be required.

Do I need an external air compressor?
Yes. This machine requires an external compressed-air supply. A dedicated inline air dryer should also be installed to protect the torch and consumables.

Can it cut aluminum and stainless steel?
Yes. Plasma cutting works on electrically conductive metals, including steel, stainless steel, aluminum, copper, titanium, and nickel alloys.
