Description
PROFAX® PX262-MIG Wire Feeder & Gun Package - 300 Amps
Features:
- Trigger hold (reduces operator fatigue on longer welds)
- Features FAN (fan as needed). Reduces noise, energy usage and contaminants pulled into machine
- Two (2) gear driven rolls with tool-less roll change. (Uses Miller style drive rolls)
- .035/.045 solid wire drive rolls included
- Accepts Miller style gun connection

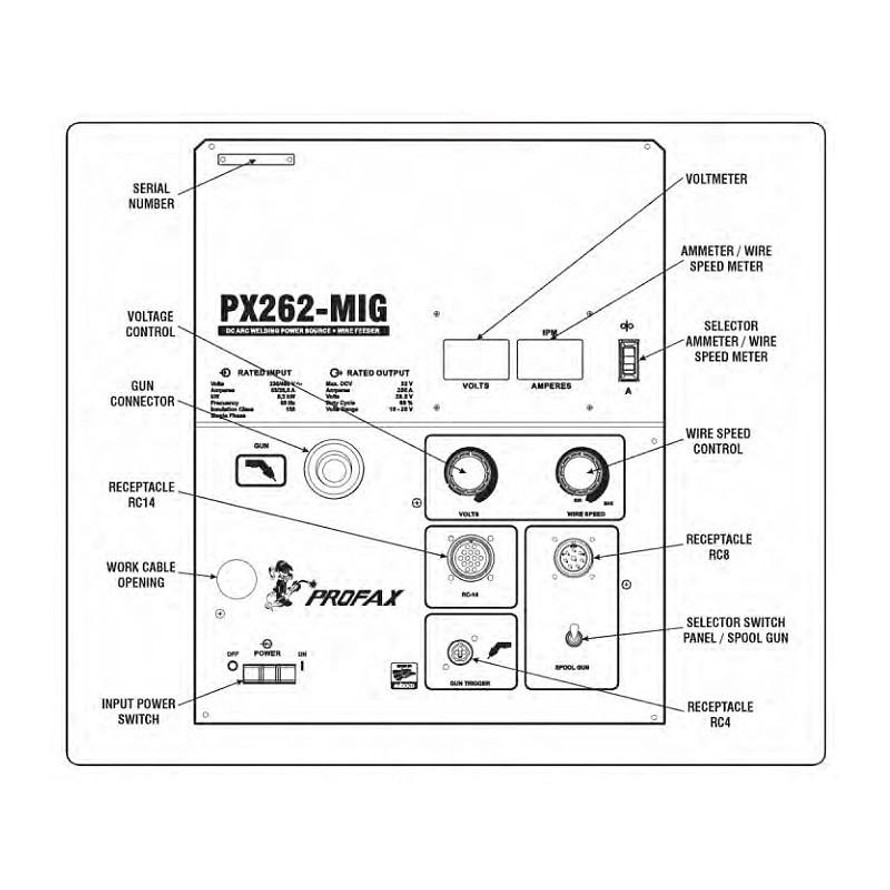

- Digital LED meters for voltage, wire feed speed and amperage
- Presetting of voltage and wire feed speed. Ensures precise parameters and accuracy
- 14 pin receptacle for direct connection of 24VAC wire feeders or spool gun
- 8 pin receptacle for direct connection of PROFAX AEC-200-4 spool gun
- Side mounted hanger for mig gun and leads
- Single cylinder rack with securing chain
- Factory installed running gear

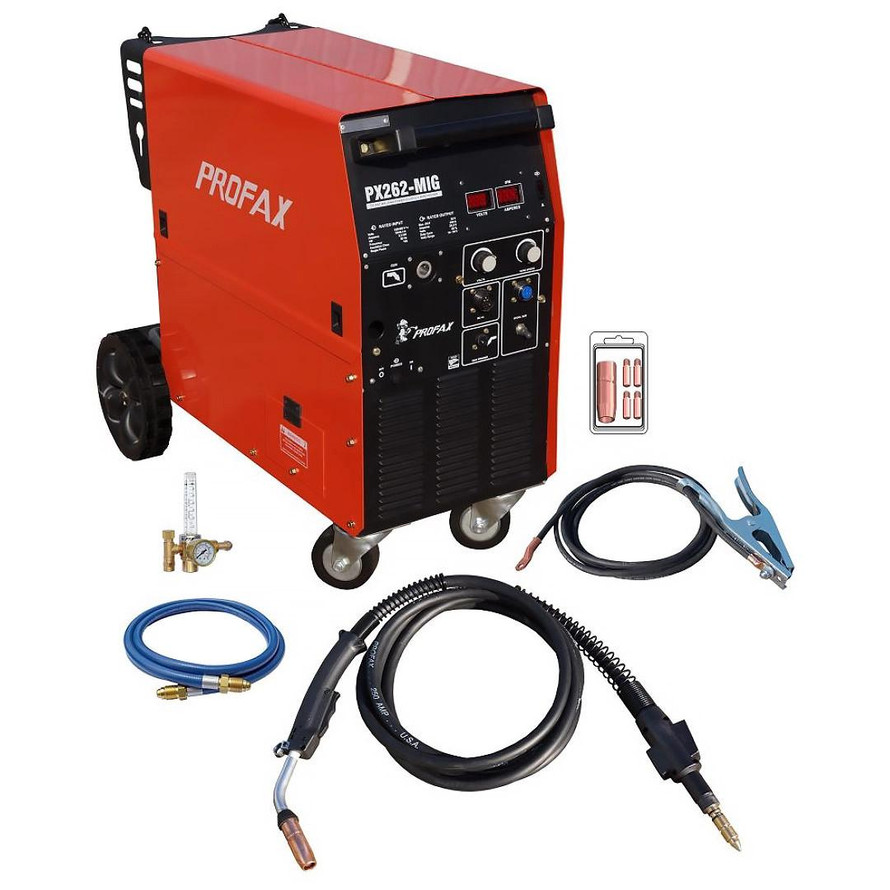

Comes Complete With:
- 15 ft. MIG gun (FCM-250-4045-15)
- 10 ft. work cable with clamp
- 10 ft. input power cord (plug not included)
- RF1430-580 flowmeter/regulator w/10 ft. gas hose
- Dual groove reversible .035/.045 solid wire drive rolls
- Extra contact tips and nozzle
- 2ea .035 contact tips (17S-35)
- 2ea .045 contact tips (17S-45)
- 1ea 5/8" nozzle (27K62)
Applications:
- Metal Fabrication
- Maintenance & Repair
- Automotive Workshops
- Farm / Home
- Light industrial
Applications:
- MIG (GMAW)
- Flux-Cored (FCAW)
Feeder Specifications:
| Part # | PX262-MIG |
|---|---|
| Ameprage Range | 30-300 A |

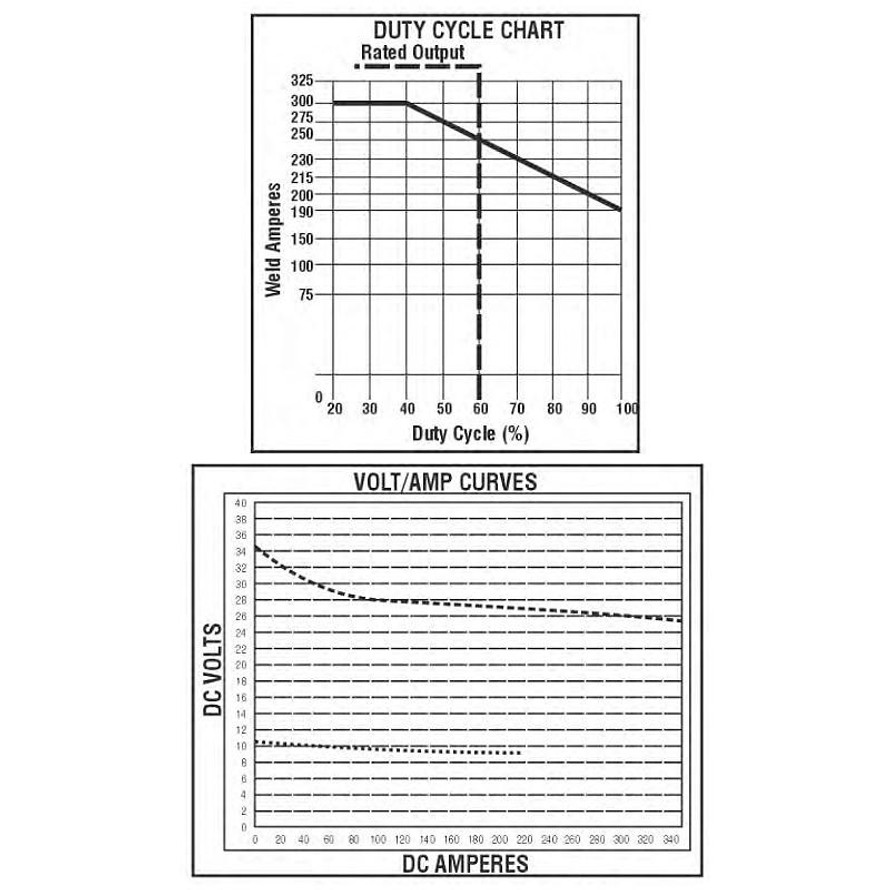

| Rated Output |
300 A @ 28 VDC - 40% Duty Cycle 250 A @ 26.5 VDC - 60% Duty Cycle 190 A @ 23.5 VDC - 100% Duty Cycle |
| Input at Rated Output, 60 Hz |
Volts: 208 Amps: 55 KW: 9.4 KVA: 10.5 Volts: 230 Amps: 53 KW: 9.3 KVA: 11.5 Volts: 460 Amps: 26.5 KW: 8.3 KVA: 10.3 |
| Input Power | 208/230/460, single-phase, 60 Hz Shipped from factory set for 460VAC |
| Wire Type & Diameter |
Solid/Stainless Steel: .035" - .045" (0.9 - 1.2mm) Flux-Cored: .035" - .045" (0.9 - 1.2mm) |
| Wire Feed Speed | 50 - 850 IPM (1.3 - 20 m/min) |
| Maximum Spool Size | 12" (305mm) |
| Maximum OCV | 35 VDC |
| Height | 31.2" (794mm) |
| Width | 14.2" (362mm) |
| Length | 38" (965mm) |
| Weight | 264.5 lbs. (120kg) |
Additional Information
Weld Type: |
MIG |
Category: |
Welding Machine |
Part Type: |
Wire Feeders |
