CK Worldwide

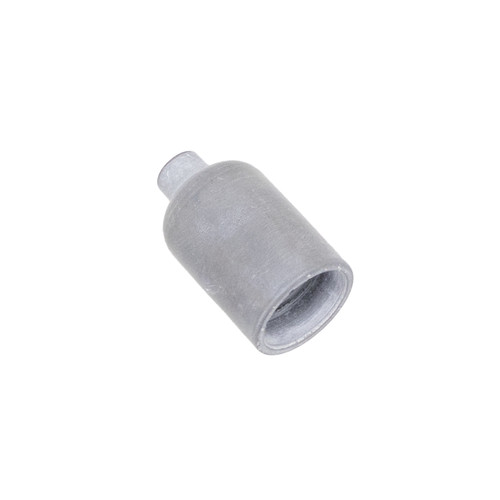

Gas Lens Super Cups #4 - #8 For Series 3 (17/18/26) (Pack of 2)

(1 review) Write a Review
UPC:
720340009081
MPN:
3SG4
Minimum Purchase:
1 unit
  • CK Worldwide Gas Lens Super Cups #4 - #8 For Series 3 (17/18/26) (Pack of 2)
  • CK Worldwide Gas Lens Super Cups #4 - #8 For Series 3 (17/18/26) (Pack of 2)
  • CK Worldwide Gas Lens Super Cups #4 - #8 For Series 3 (17/18/26) (Pack of 2)
  • CK Worldwide Gas Lens Super Cups #4 - #8 For Series 3 (17/18/26) (Pack of 2)
$34.00

Description

CK-3SG- (Select Size From Options Above)

Priced & Sold as a Pack of 2.

Gas Lens Super Cups reduce thermal conductivity (heat transfer) by nearly 40%, when compared to standard Pink Alumina nozzles.  Made from modern advanced materials, these Silica-Nitride cups are oven cured in pure nitrogen to promote a denser grain structure.  Super Cups eliminate the potential for thermal shock which results in standard cups cracking, splitting and melting when exposed to high AC amperage TIG welding jobs.

Now you can run your balled up tungsten flush with the cup orifice and keep the cup size tight for maximum cleaning and gas ionization which is key to quality Aluminum TIG welding jobs.

Part # Cross Reference Size Orifice Diameter Length
CK-3SG4 54N18HPN #4 1/4" (6.3mm) 1-5/8" (41.3mm)
CK-3SG5 54N17HPN #5 5/16" (7.9mm) 1-5/8" (41.3mm)
CK-3SG6 54N16HPN #6 3/8" (9.5mm) 1-5/8" (41.3mm)
CK-3SG7 54N15HPN #7 7/16" (11.1mm) 1-5/8" (41.3mm)
CK-3SG8 54N14HPN #8 1/2" (12.7mm) 1-5/8" (41.3mm)
View AllClose

Additional Information

Parts & Accessories:
TIG Nozzles
Parts Style:
Gas Lens
Parts Style:
High Temp Cups
Torch Model:
17 Style
Torch Model:
18 Style
Torch Model:
26 Style
Torch Model:
CS410
Torch Model:
CK-150
Torch Model:
CK-210 / TL210
Torch Model:
CK-FL130 / FL150
Torch Model:
CK-FL230 / FL250
Torch Model:
CK-300 / TL300
Torch Model:
CK-510
Torch Model:
23 Style Machine Torch
View AllClose

1 Review

  • 4

    Hold up better to our abuse of our fabrication…

    Posted by Adam J. on Mar 24th 2020

    Hold up better to our abuse of our fabrication shop.
