Description
CK-MT500-18

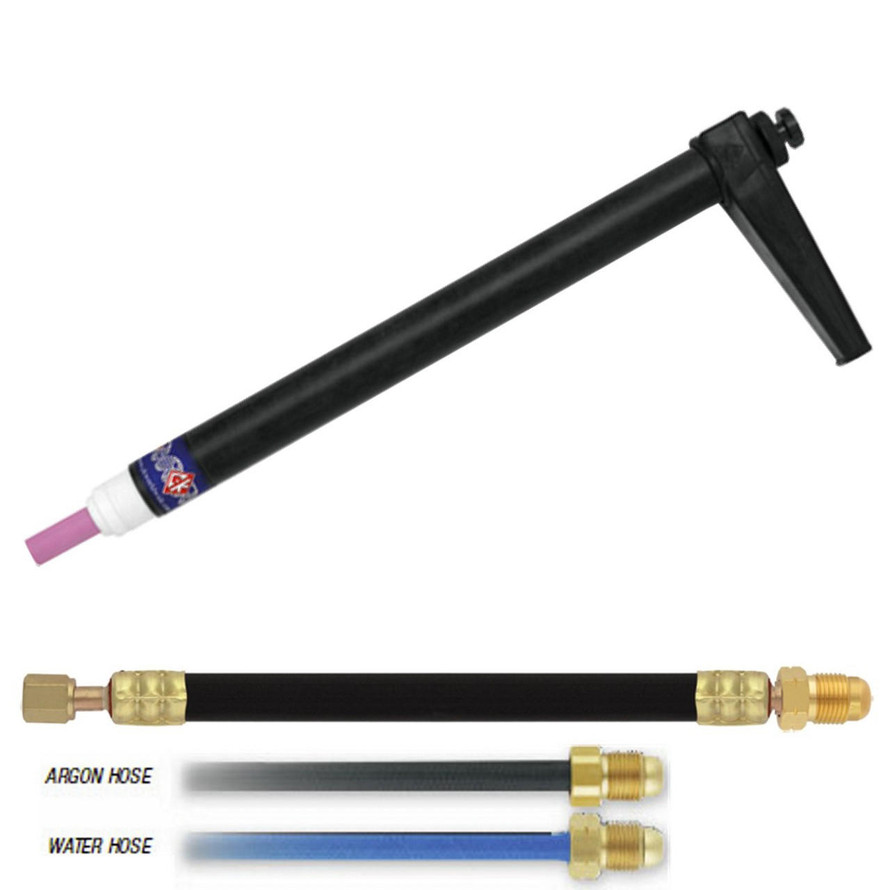

CK Water-Cooled Back-Loading Machine TIG Torch. 500 Amps ACHF or DCSP @ 100% Cycle Model Torch is 18" (457mm) Long, weighing 16 oz. (454g).
Torch Package is equipped with 18" Torch Body and standard Cable Set.
The MT500 torch packages are also available with 24 or 32 pitch racks. The unique adjusting cap design of the torch provides tungsten adjustment while welding and for ease of setup.
Cables Sets also available* in:
- Super-Flex - Rugged High Flex Separated Cables
- 1 Piece - Single Piece Cable Set Designed for DINSE Connectors
*Call for pricing.
| Specifications: | CK-MT500-18 | ||
|---|---|---|---|
| Amperage | 500 ACHF or DCSP @ 100% | ||
| Water-cooled body | Rigid Head | ||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | ||
| Head size | 3 Series | ||
| Torch body weight | 16 oz. (454g) | ||
| Torch length | 18" (457mm) | ||
| Handle diameter | 1-3/8" (35mm) | ||
| Power Connection | 7/8"-14LH Male | ||
| Gas Connection | 5/8"-18RH Male | ||
| Water Connection | 5/8"-18LH Male | ||
| Part # | CK-MT500C-18 | CK-MT512-18-1 | CK-MT525-18-1 |
| Cable Material | N/A | Standard | Standard |
| Cable Length | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Machine Mounted
|
|
Torch Model:
|
Automated
|
|
Amperage Rating:
|
>350 Amp
|
