Description
W-500A (WP-27A)

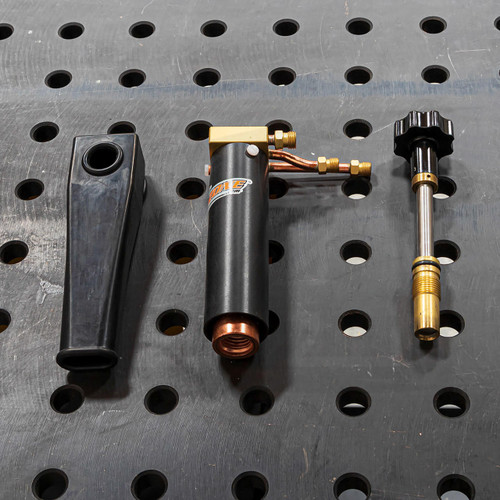

Machine Mounted TIG Torch, 500Amp Water Cooled. The WP-27A (W-500A) Automation Series is engineered for semi-automated, robotic, tube mill, seamer and related high throughput TIG welding applications.
-- For Improved Torch Performance and Longer Parts Life - Upgrade to our Water-Cooled Nozzle Kit: Part # 27-WCN (Contact Customer Care).
**Note:
- For 3' (0.9m) Long Cables use Part No. 27-18 Cable Mounting Bracket Assembly.
- Torch does not include front end parts.
| Specifications: | W-500A Automation Torch | ||
|---|---|---|---|
| Amperage | 500A DCSP or 350A ACHF @ 100% Duty Cycle. | ||
| Water-Cooled Body | 180º Barrel Style | ||
| Electrode Capacity | .040" (1.0mm) -- 1/4" (6.4mm) | ||
| Top or Front Tungsten Loading | Integral Gas Lens Collet Body in Sizes: .040" (1.0mm) -- 1/4" (6.4mm) | ||
| Torch Length | 9" (228mm) Accepts 7" (177mm) Electrodes | ||
| Barrel Diameter | 1-3/8" (34.9mm) | ||
| Power Connection | 7/8"-14LH Male* (3' cables use 5/8 x 18 LH Male)** | ||
| Gas Connection | 5/8"-18RH Male* | ||
| Water Connection | 5/8"-18LH Male* | ||
| Part # | WP-27A | WP-27A-3 | WP-27A-12 |
| Cable Material | N/A | Rubber | Rubber |
| Cable Length | N/A | 3' (0.9m)** | 12.5' (3.8m)* |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Machine Mounted
|
|
Torch Model:
|
Automated
|
|
Amperage Rating:
|
>350 Amp
|
|
Weld Type:
|
TIG
|
|
Gun Style:
|
W-500
|
|
AMP:
|
500
|
|
Product Type:
|
Torch
|
|
Cooling:
|
Water
|
