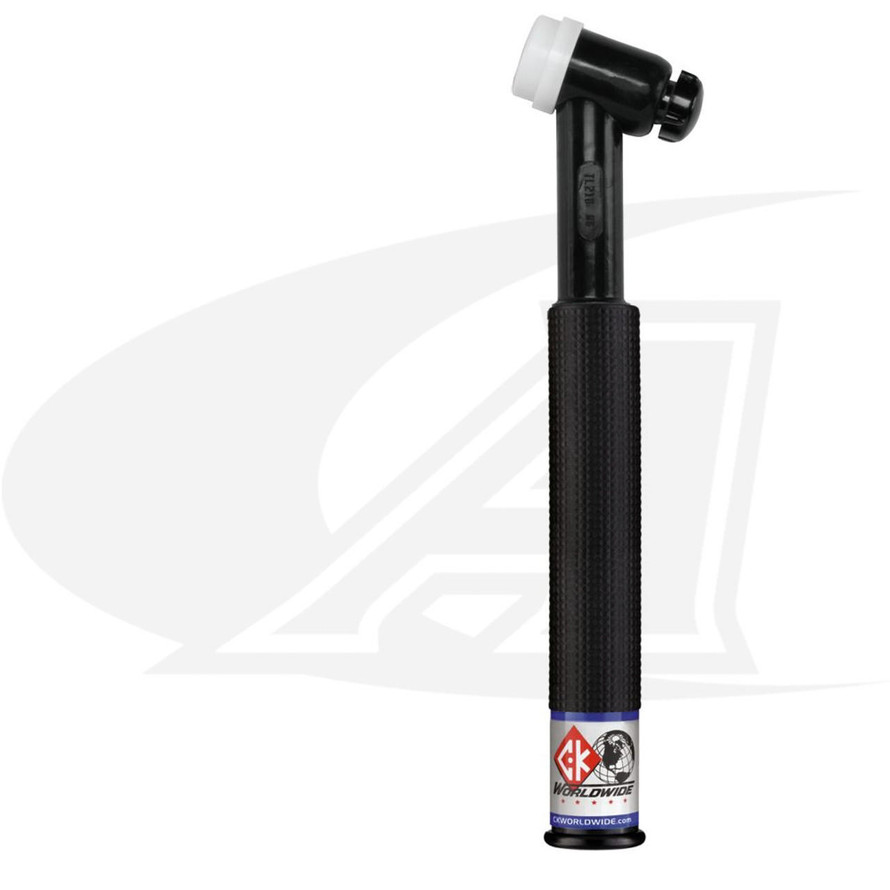

CK Worldwide® Trim-Line™ 210 Rigid Head Air-Cooled TIG Torch (Choose Options From Above)

26-Series performance in a smaller, lighter TIG torch.
The CK Worldwide® Trim-Line™ 210 combines high-amperage air-cooled performance with a compact, lightweight torch body. Its rigid 70° head provides a familiar welding angle, while larger internal cooling passages and a hardened alloy body help the torch handle demanding TIG welding applications.

The Trim-Line™ design delivers the performance welders expect from a traditional 26-Series TIG torch while reducing overall torch size and weight for improved comfort and control.

Why Welders Choose the Trim-Line™ 210

• Compact 26-Series Alternative: Provides comparable performance in a smaller, lighter package.
• Rigid 70° Head: Traditional torch angle for dependable control and positioning.
• Improved Cooling: Larger cooling passages in the torch head help manage heat during demanding applications.
• Hardened Alloy Body: Built for durability and professional shop use.
• 3 Series Consumables: Uses standard 17, 18, and 26 Series front-end parts.
• SuperFlex™ Cable Options: Complete packages include lightweight, flexible one-piece power cables.

Choose the Right Configuration

Important: Select the configuration that matches the components you need. The torch-body-only option does not include a handle or power cable, while the complete packages include the handle and one-piece SuperFlex™ power cable.

Compact Alternative to a Traditional 26-Series Torch

The Trim-Line™ 210 is designed for welders who need the capability of a traditional 26-Series air-cooled TIG torch without the extra bulk. Its smaller, lighter construction can improve torch control and reduce hand fatigue, especially during longer welding sessions.

3 Series Front-End Compatibility

The Trim-Line™ 210 uses standard 3 Series TIG torch front-end parts, commonly associated with 17, 18, and 26 Series torches. This makes it easy to use familiar consumables while upgrading to a smaller and lighter torch design.

Compatible 3 Series front-end components include the appropriate:

• Collets
• Collet Bodies
• Gas Lenses
• Cups
• Back Caps
• Other compatible 3 Series consumables

Power Cable Compatibility

The Trim-Line™ 210 is designed for use with CK Worldwide® SuperFlex™ power cables:

• CK-412PCSF
• CK-425PCSF

The torch body can also be used with compatible standard 200 Amp air-cooled power cables, including:

• 46V28R
• 46V30R

Ideal Applications

• General TIG fabrication
• Stainless steel welding
• Aluminum TIG welding
• Pipe and tube fabrication
• Automotive and motorsports fabrication
• Maintenance and repair
• Production TIG welding
• Applications where a traditional 26-Series torch feels too large or heavy

Frequently Asked Questions

What makes the Trim-Line™ 210 different from a traditional 26-Series torch?
The Trim-Line™ 210 is designed to provide similar air-cooled welding performance while using a smaller, lighter torch body for improved comfort and control.

Is the torch head flexible?
No. This model uses a 70° rigid head.

What consumables does it use?
The torch uses standard 3 Series front-end parts commonly used with 17, 18, and 26 Series TIG torches.

What tungsten sizes can it use?
The torch supports .020" (0.5mm) through 5/32" (4.0mm) tungsten electrodes with the appropriate 3 Series consumables.

What is the difference between the four available configurations?

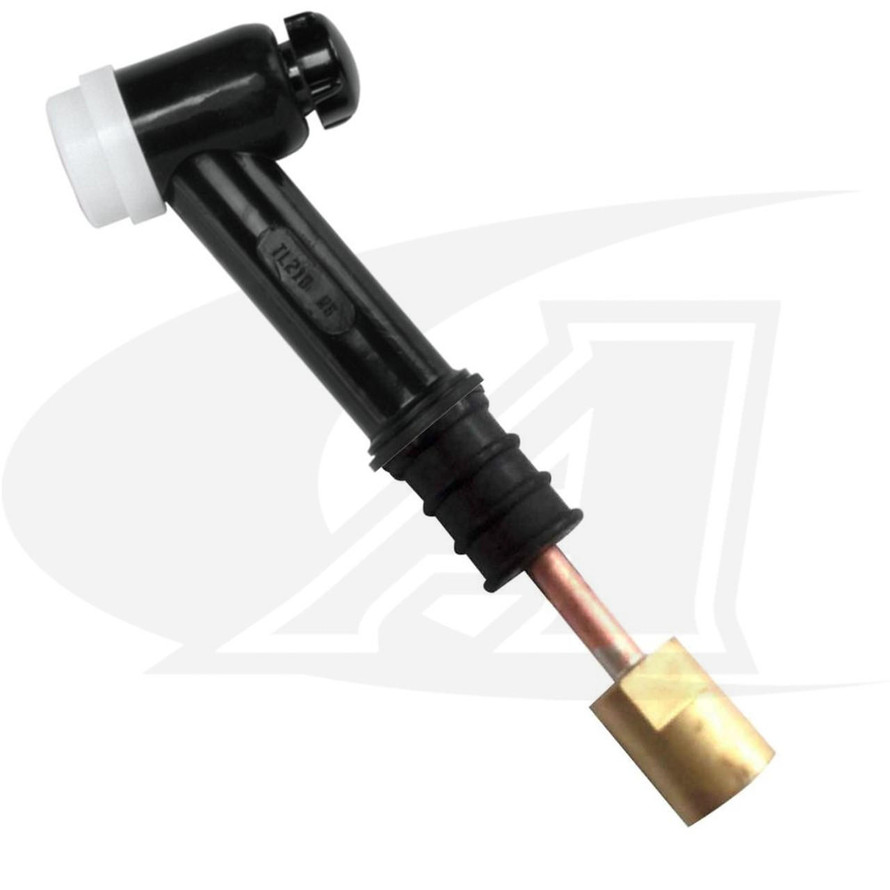

The CK-TL210 RG is the torch body only. CK-TL210 RG-HDL adds the handle. CK-TL2112HSF RG is a complete package with a 12.5' SuperFlex™ power cable, while CK-TL2125HSF RG includes a 25' SuperFlex™ power cable.

Can I use a standard air-cooled power cable?
Yes. Although the torch is designed for CK Worldwide® SuperFlex™ cables, the body can also fit compatible standard 200 Amp air-cooled power cables including 46V28R and 46V30R.

Is this torch water-cooled?
No. The Trim-Line™ 210 is an air-cooled TIG torch.
