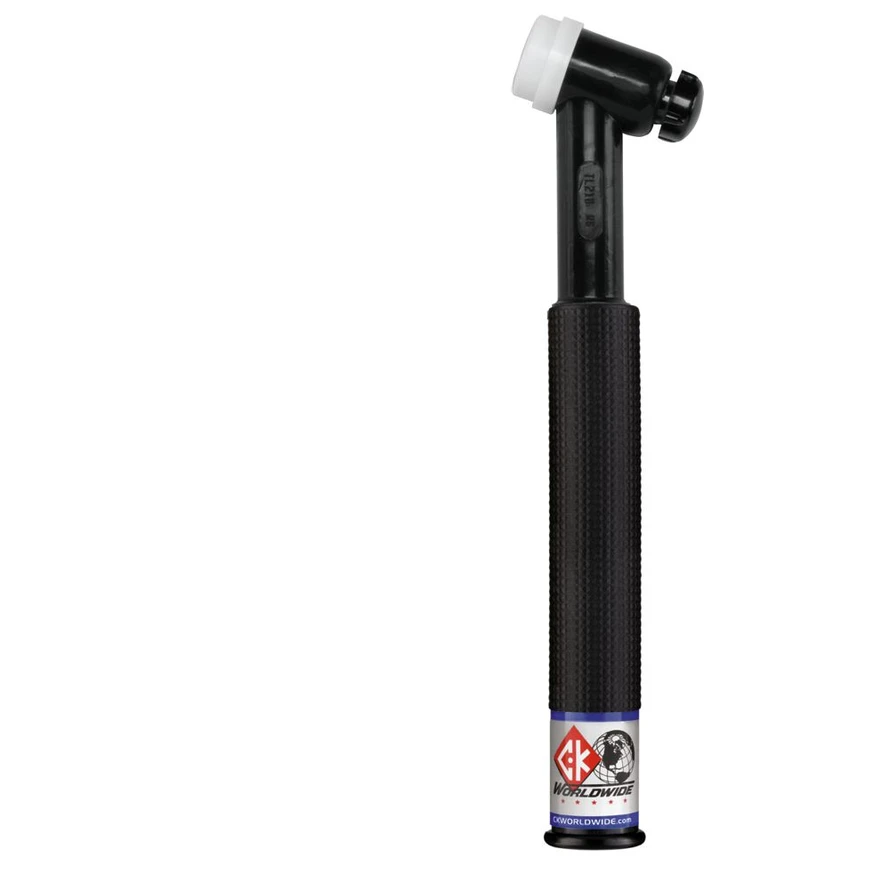

CK Worldwide® Trim-Line™ 210 Rigid Head Air-Cooled TIG Torch – Two-Piece Cable (Choose Options From Above)

200 Amp air-cooled performance in a smaller, lighter torch with a traditional 70° rigid head.
The CK Worldwide® Trim-Line™ 210 Rigid Head TIG Torch delivers the performance of a traditional 26-Series torch in a more compact and lightweight design. Larger cooling passages in the head and a hardened alloy body help provide dependable performance for demanding TIG welding applications.

This version is available with a two-piece SuperFlex™ cable system, which separates the gas and power connections at the machine end. Complete torch packages are available with either 12.5' (3.8m) or 25' (7.6m) cables.

Why Welders Choose the Trim-Line™ 210

• Compact 26-Series Alternative: High-amperage air-cooled performance in a smaller, lighter torch.
• 70° Rigid Head: Provides a consistent, familiar torch angle for everyday TIG welding.
• Improved Cooling: Larger cooling passages in the head help manage heat during demanding applications.
• Hardened Alloy Body: Designed for durability and professional shop use.
• 3 Series Consumables: Uses standard front-end parts commonly shared by 17, 18, and 26 Series TIG torches.
• Two-Piece Cable Option: Separate gas and power connections provide compatibility with machines using this connection style.

Choose the Right Configuration

Important: Select the configuration that matches the components you need. The torch-body-only option does not include a handle or cable. The complete NSF packages include the CK-210HTF handle and two-piece SuperFlex™ cable system.

Two-Piece Cable Connection

The complete NSF torch packages use a two-piece cable configuration with separate gas and power connections at the welding machine.

Check your welding machine connections before ordering. This two-piece configuration is designed for setups using a separate 5/8"-18 RH gas connection and copper-lug power connection.

Two-Piece vs. One-Piece Cable

The torch performance is the same—the primary difference is how the torch connects to the welding machine. Always match the cable configuration to your machine.

Compact Alternative to a Traditional 26-Series Torch

The Trim-Line™ 210 is designed for welders who want the capability of a traditional 26-Series air-cooled TIG torch without the additional bulk. Its smaller, lighter construction can improve torch control and reduce hand fatigue during longer welding sessions.

3 Series Front-End Compatibility

The Trim-Line™ 210 uses standard 3 Series TIG torch front-end parts commonly used with 17, 18, and 26 Series TIG torches.

Compatible 3 Series front-end components include the appropriate:

• Collets
• Collet Bodies
• Gas Lenses
• Cups
• Back Caps
• Other compatible 3 Series consumables

Power Cable Compatibility

The torch body is designed for use with CK Worldwide® SuperFlex™ power cables:

• CK-412PCSF
• CK-425PCSF

The torch body can also fit compatible standard 200 Amp air-cooled power cables:

• 46V28R
• 46V30R

Ideal Applications

• General TIG fabrication
• Stainless steel welding
• Aluminum TIG welding
• Pipe and tube fabrication
• Automotive and motorsports fabrication
• Maintenance and repair
• Production TIG welding
• Machines requiring separate gas and power torch connections
• Applications where a traditional 26-Series torch feels too large or heavy

Frequently Asked Questions

What is special about the NSF version?
The NSF complete torch packages use a two-piece cable system with separate gas and power connections at the welding machine.

How does the two-piece torch connect to the machine?
The machine-side gas connection uses a 5/8"-18 RH female nut, while the power connection uses a copper lug.

What is the difference between the NSF and HSF versions?
The NSF version uses separate gas and power connections. The HSF version uses a one-piece power cable configuration. Choose the version that matches the connection requirements of your welding machine.

Is the torch head flexible?
No. This version uses a 70° rigid head.

What consumables does it use?
The torch uses standard 3 Series front-end parts commonly used with 17, 18, and 26 Series TIG torches.

What tungsten sizes can it use?
The torch supports .020" (0.5mm) through 5/32" (4.0mm) tungsten electrodes with the appropriate 3 Series consumables.

What is the difference between CK-TL2112NSF RG and CK-TL2125NSF RG?
Both are complete two-piece SuperFlex™ torch packages. CK-TL2112NSF RG includes a 12.5' (3.8m) cable, while CK-TL2125NSF RG includes a 25' (7.6m) cable.

Is this torch water-cooled?
No. The Trim-Line™ 210 is an air-cooled TIG torch.
