W-225 Modular (WP-225)

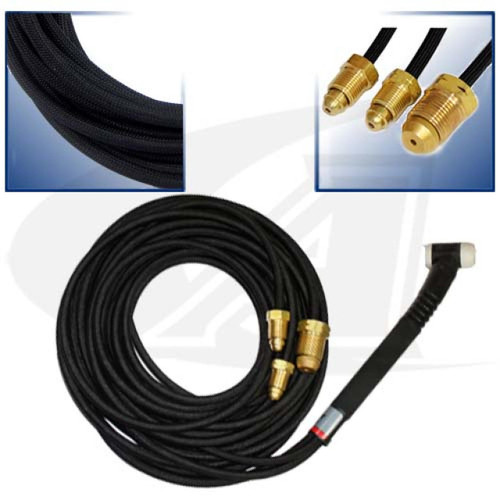

Modular Flex Head Torch TIG Torch Package 225 Amp Water Cooled with SuperFlex Power, Gas & Water Cables.
A modular torch that accepts a variety of head styles and amperage ranges.
Includes: 9/70 and 17/26 Series 70 Degree Heads.
| Specifications: | W-225 Modular | |||
|---|---|---|---|---|
| Amperage | 225A DCSP or 160A ACHF @ 100% Duty Cycle. | |||
| Water-Cooled body | Flexible body accepts several different head styles | |||
| Electrode capacity | .040" (1mm) -- 5/32" (4.0mm) | |||
| Head size | 2 Series, 3 Series, or 24 Series | |||
| Torch body weight | 4 oz. (113.4g) | |||
| Torch Length | varies by head type | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | 7/8"-14LH Male | |||
| Gas Connection | 5/8"-18RH Male | |||
| Water Connection | 5/8"-18LH Male | |||
| Part # | WP-225 | WP-225-HDL | WP-225-12-R | WP-225-25-R |
| Handle | N/A | 53N06 | 53N06 | 53N06 |
| Cable Material | N/A | N/A | Super Flex | Super Flex |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
Specialty Torches
|
|
Amperage Rating:
|
200 - 310 Amp
|
