CK Worldwide® FL250 FlexLoc™ 250 Amp Water-Cooled TIG Torch (Choose Options From Above)

Position your TIG torch exactly where you need it.
The CK Worldwide® FL250 FlexLoc™ is a professional 250 Amp water-cooled TIG torch featuring a 360° variable-angle head system. The FlexLoc™ design allows the torch head to be positioned around the torch body, giving welders greater flexibility when working around corners, inside assemblies, or in other difficult-to-reach welding positions.

Rated at 250 Amps ACHF or DCSP at 100% duty cycle, the FL250 combines high-amperage water-cooled performance with exceptional torch positioning for demanding TIG welding applications.

Why Welders Choose the FlexLoc™ FL250

• 360° Variable-Angle Positioning: Adjust the torch head to improve access to difficult weld joints.
• 250 Amp Water-Cooled Performance: Built for demanding TIG welding applications.
• 100% Duty Cycle: Rated at 250 Amps ACHF or DCSP at 100% duty cycle.
• Compact Torch Body: 7" (178mm) torch length with a slim 3/4" (19.1mm) handle diameter.
• 3 Series Consumables: Uses a 3 Series / 18-style torch head configuration.
• Multiple Package Options: Choose the torch body, body with handle, or a complete torch package.

Choose the Right FL250 Configuration

Important: The CK-FLWB and CK-FLTBAW configurations do not include a torch head. Torch heads are sold separately.

The CK-FL2512SF and CK-FL2525SF complete torch packages include the 3 Series head, CK-200H handle, and SuperFlex power, water, and gas hoses.

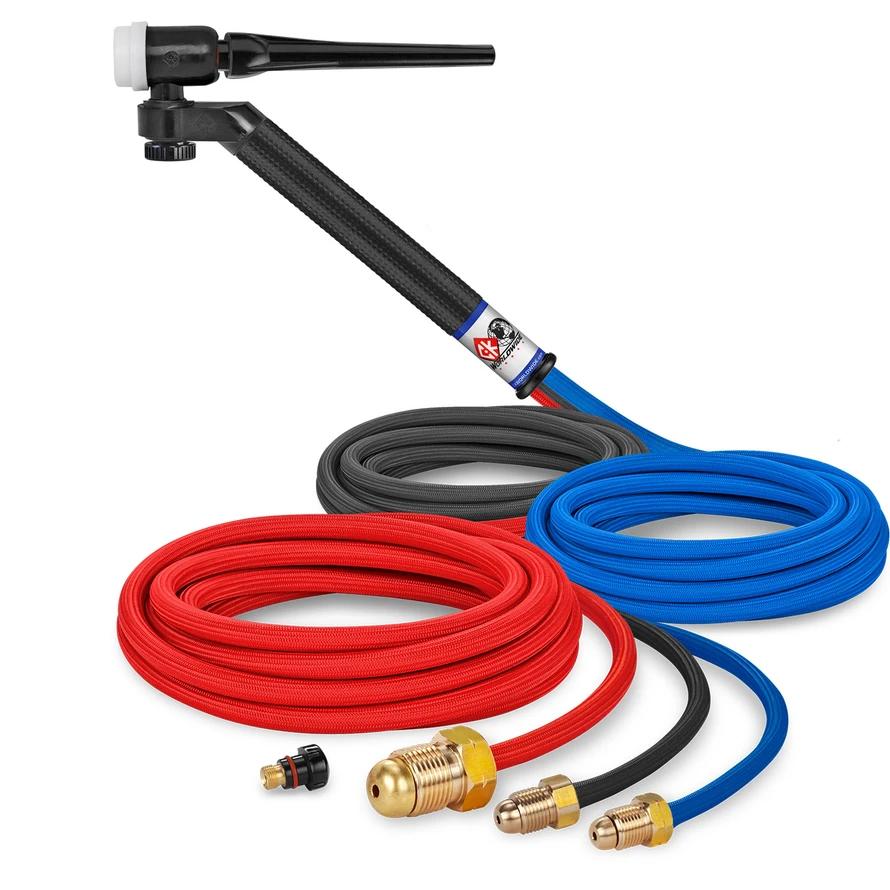

Complete Torch Package Includes

• CK Worldwide® FL250 FlexLoc™ Torch Body
• 3 Series Torch Head
• CK-200H Handle

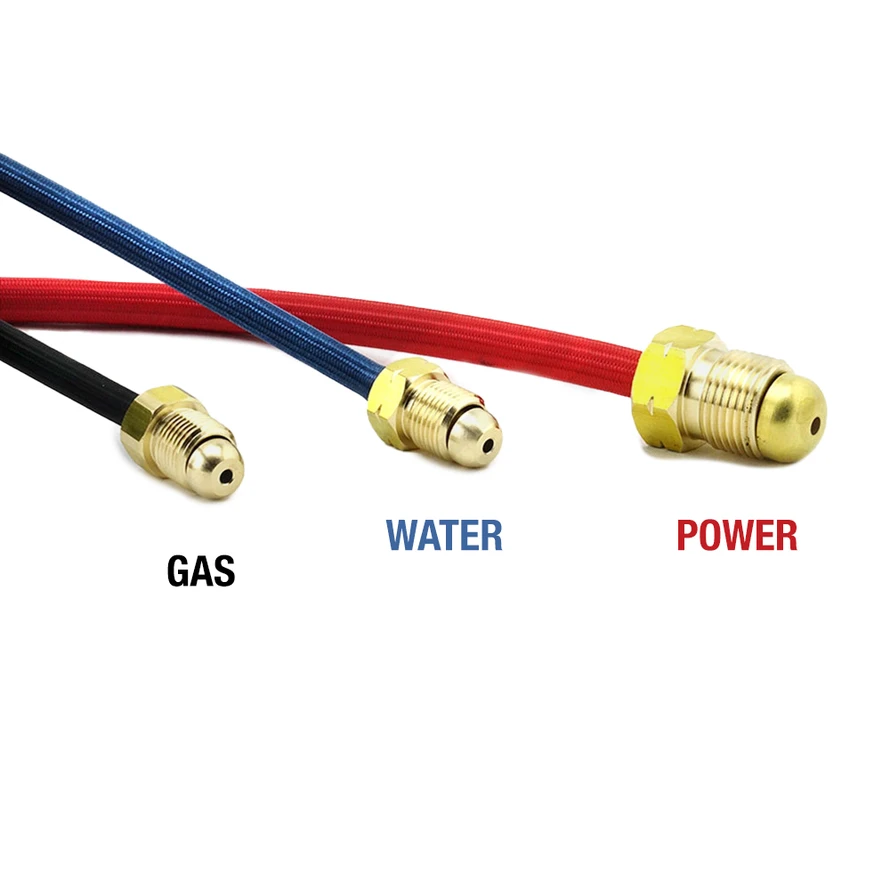

• SuperFlex Power Cable
• SuperFlex Water Hose
• SuperFlex Gas Hose
• Choice of 12.5' (3.8m) or 25' (7.6m) cable/hose length depending on selected model

360° FlexLoc™ Positioning

The FlexLoc™ system allows the torch head to be repositioned around the torch body instead of limiting the welder to one fixed torch angle. This gives the operator greater control over torch position when working around obstructions or welding joints with limited access.

• Improve access to tight weld joints
• Position the head around workpiece obstructions
• Reduce awkward wrist and hand positions
• Improve torch angle and weld visibility
• Adapt one torch to a wider range of welding positions

Electrode Capacity

The FL250 supports tungsten electrodes from .020" (0.5mm) through 5/32" (4.0mm) when configured with the appropriate 3 Series consumables.

Ideal Applications

• Precision TIG welding
• Restricted-access weld joints
• Pipe and tube fabrication
• Aerospace fabrication
• Automotive and motorsports
• Production TIG welding
• Stainless steel fabrication
• Applications requiring high-amperage water-cooled TIG performance

Frequently Asked Questions

What makes the FlexLoc™ different from a standard TIG torch?
The FlexLoc™ design provides 360° variable-angle head positioning, allowing the operator to reposition the torch head for improved joint access and welding comfort.

Is the FL250 air-cooled or water-cooled?
The CK-FL250 is a water-cooled TIG torch.

What is the amperage rating?
The FL250 is rated for 250 Amps ACHF or DCSP at a 100% duty cycle.

What tungsten sizes can it use?
The torch supports .020" (0.5mm) through 5/32" (4.0mm) tungsten electrodes with the appropriate consumables.

Does every configuration include a torch head?
No. The CK-FLWB torch body and CK-FLTBAW torch body with handle do not include a torch head. The complete CK-FL2512SF and CK-FL2525SF packages include a 3 Series head.

What is the difference between CK-FL2512SF and CK-FL2525SF?
Both are complete FlexLoc™ torch packages. The CK-FL2512SF includes 12.5' (3.8m) SuperFlex hoses, while the CK-FL2525SF includes 25' (7.6m) SuperFlex hoses.

What consumable series does the FL250 use?
The FL250 uses a 3 Series / 18-style torch head and compatible 3 Series consumables.
