Description

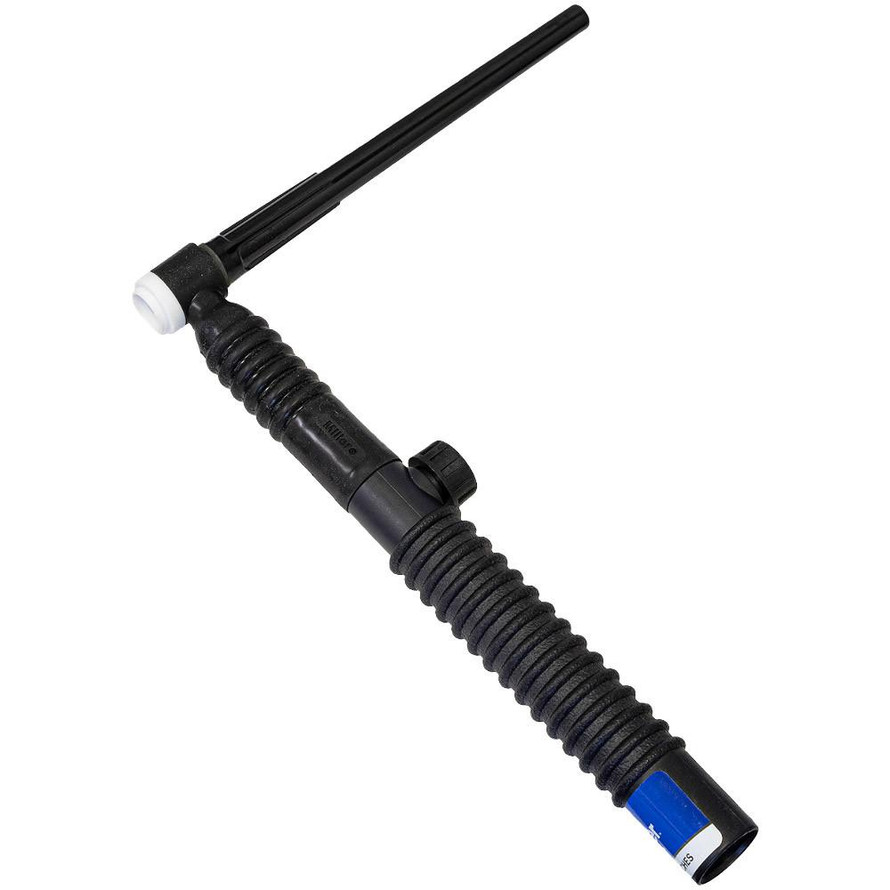

A-125 Flex Valve (WP-9FV)
The WP-9FV is a well-balanced, lightweight torch body with built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The WP-9FV is designed for welding thin gauge materials and is small enough to get into confined areas like tube clusters, tanks, manifolds, and is great for sheet metal repairs etc. Torch package includes Two-Piece Heavy-Duty Power Cable/Gas Line Assembly.
| Specifications: | A-125 Flex Valve (WP-9FV) | |||
|---|---|---|---|---|
| Amperage | 125A DCSP or 100A ACHF @60% Duty Cycle | |||
| Air-Cooled body | Flexible head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 5 oz. (141.7g) | |||
| Torch length | 8" (203.2mm) | |||
| Handle diameter | 7/8" (22.2mm) | |||
| Power Connection | Torch: 3/8"-24RH Male | Machine: 3/8"-24RH Male | ||
| Part # | WP-9FV | WP-9FV-HDL | WP-9FV-12-R | WP-9FV-25-R |
| Handle | N/A | 105Z55R | 105Z55R | 105Z55R |
| Cable Type | N/A | N/A | Two-Piece | Two-Piece |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
9 Style
|
|
Amperage Rating:
|
100 - 130 Amp
|
