Description
CK-TL210 FX

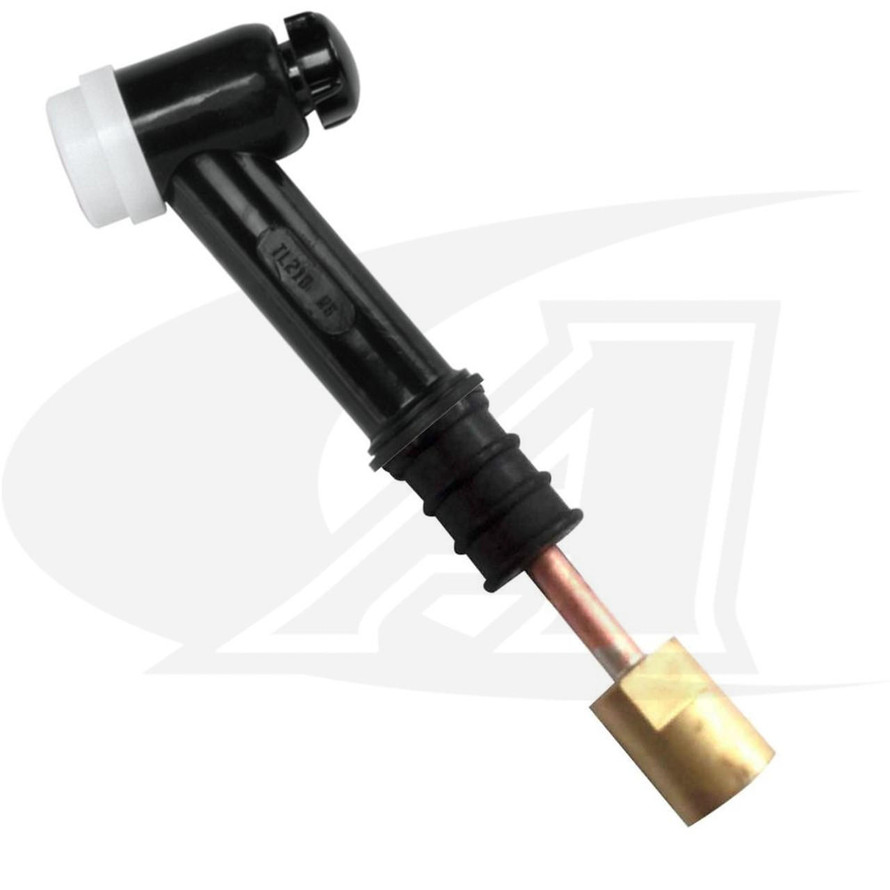

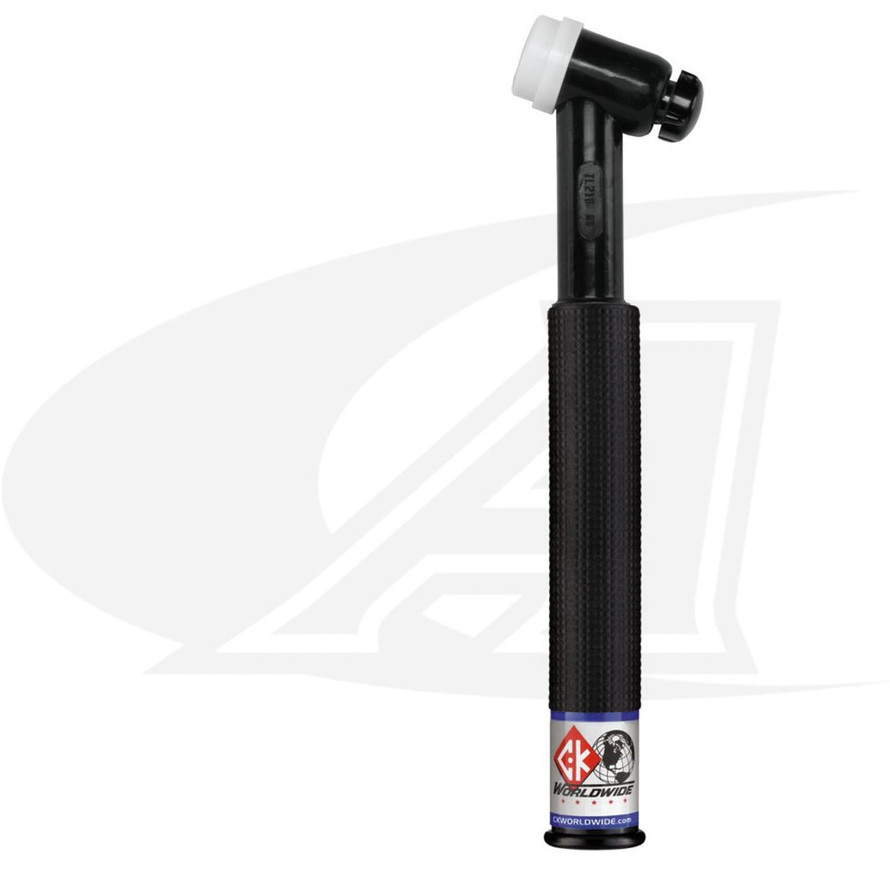

TrimLine™ Flex Head 200 Amp Air-Cooled TIG Torch.
Benefits include: Larger Cooling Passages in Head, Hardened Alloy Body and a Smaller, Compact Lightweight Design.
All the performance of traditional 26-Series TIG torches, but smaller and lighter!
Torch uses standard 3-Series (17/18/26 series) front end parts and has a 5/8"-18RH Female power connection.
Torch designed for use with CK Worldwide's specialized SuperFlex™ power cables: CK-412PCSF or CK-425PCSF; but this torch body will fit on standard 200A air-cooled power cables (46V28R, 46V30R).
| Specifications: | CK-TL210 FX | |||
|---|---|---|---|---|
| Amperage | 200 amp ACHF or DCSP @ 100% | |||
| Air-Cooled body | Flexible head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 5oz. (141g) | |||
| Torch length | 8.125" (206mm) | |||
| Handle diameter | 1" (254mm) | |||
| Power Connection | Torch: 5/8"-18RH Female | Machine: 5/8"-18RH Female | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
26 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
