StrongHand Tools

Modular Tube & Pipe Notcher

(6 reviews) Write a Review
MPN:
ATN100-PRO
Minimum Purchase:
1 unit
On Sale
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
  • StrongHand Tools Modular Tube & Pipe Notcher
$246.00 - $399.00

Description

BuildPro® Modular Tube & Pipe Notcher

Notching a round, or square tube or pipe has never been easier.

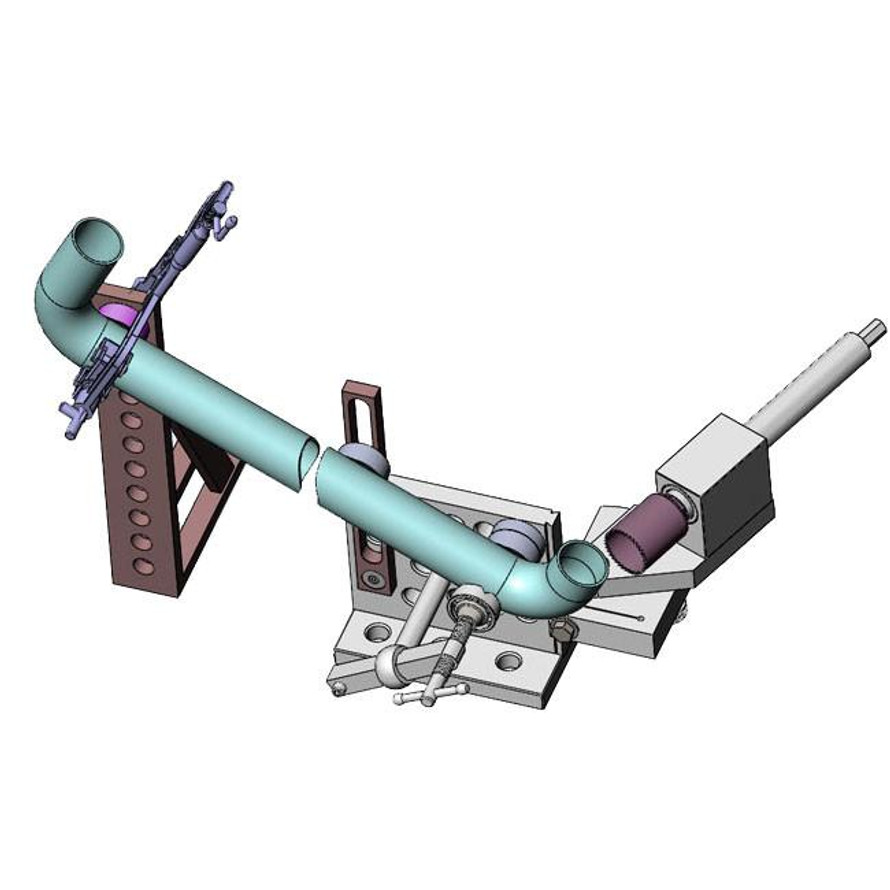

Now you can do quick and consistent notches on straight, angled and curved tubes with complex angles.

The new BuildPro® Tube & Pipe Notcher makes alignment and length control of the notch easy!

So if your building motorcycle frames, exhaust systems, custom railings etc. you need this tool.

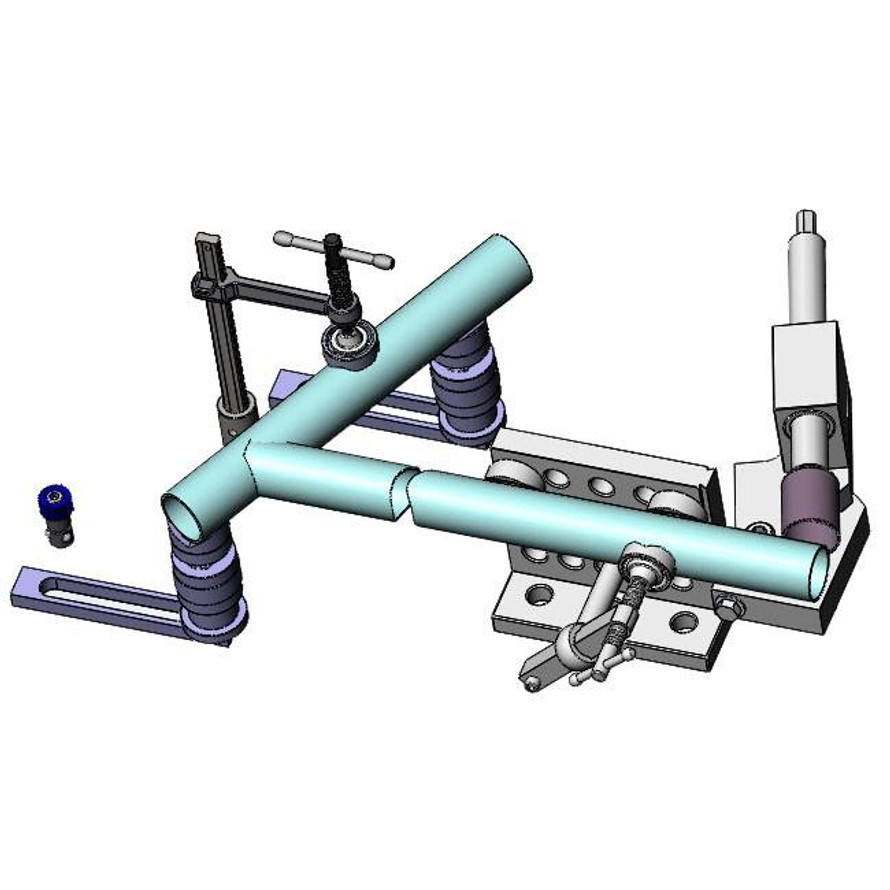

Notch 1”– to- 2-1/2” OD pipes or square tubes at any angle, or off-center. Position the two V-Blocks and clamp as needed.

The BuildPro® Tube & Pipe Notcher is specifically designed to mount quickly onto the BuildPro®, Rhino Cart®, or FixturePoint® Welding Tables, but it can also be easily adapted to almost any welding or work table, or can be used in the field.

Specifications / Features:

  • Notch 1”–to- 2-1/2” OD pipes or square tubes at any angle, or off-center!

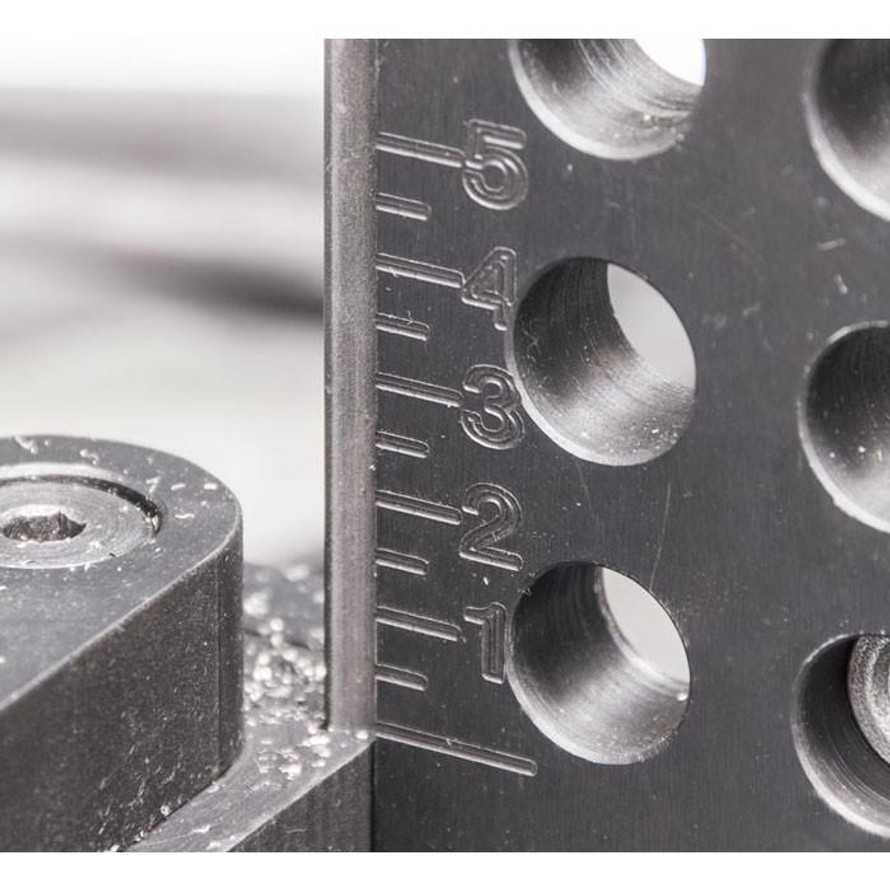

  • 0-90° adjustable angle setting with easy-to-read degree scale.
  • Heavy duty, all steel construction, with the same 5/8” thick steel used for the BuildPro Tables.
  • 25mm Steel Shaft with Double Heavy-Duty Needle Bearings.
  • Requires a powerful (cordless drill not recommended) ½” drive drill motor (not included--not sold by Arc-Zone)
  • Hole Saws: 3/4" – 2.5” diameter Hole Saws.  (sold separately - not included)
    ***It will fit a 3.5” hole saw, but the range of angles might be slightly limited at 3” & above: 0-20°.
  • Hole Saw mounting: Accepts hole saws with either ½” x 20 or 5/8” x 18 threads.
    ***Does not use the mandrels or pilot drill bits generally included with hole saw kits.
  • V-Blocks are aluminum with rounded edges and finished surfaces to create a non-marring, “soft” face.
  • Extremely easy to mount, adjust, and use.
  • Weight: 18 lbs (8.2kg)

Use the options above to select the Pro-Kit option and receive valuable clamping accessories.

Don't forget to order the hole saws you'll need.  Click here to see our selection of Morse Bi-Metal Hole Saws.

Kit Includes:

Accessory Part Number Standard Kit
SHT-ATN100
Pro Kit
SHT-ATN100-PRO
Tube & Pipe Notcher SHT-ATN100 1 1
T-Post Clamp w/ V-Pad SHT-ATNC50 1 1
Aluminum V-Blocks SHT-T54216 2 2
Round Stock Pliers SHT-PG637V -- 1
Locating Stop SHT-T54205 -- 2
V-Block Spacer SHT-T54211 -- 2
2-Hole Threaded Adapter
1 (3/8" x 18 Threads)
SHT-TXT5204 -- 1
Flush Mounting Bolts (1-3/4") SHT-T832610 -- 4



View AllClose

Additional Information

Accessory Type:
Misc
Table Brand:
Alpha 5/8
Table Brand:
BuildPro
Table Brand:
FixturePoint
Table Hole Dia.:
5/8"
View AllClose

6 Reviews

  • 5

    Awesome notcher worth every penny and awesome…

    Posted by Isaac D. on Feb 11th 2019

    Awesome notcher worth every penny , and awesome customer service.

  • 5

    I mounted this notcher on a trailer so I could…

    Posted by Roy M. on Feb 3rd 2019

    I mounted this notcher on a trailer so I could easily cope drill pipe for a horse fence. Pipe was 2-3/8 OD .250 wall thickness. Cuts turned out great, no gap between cut and top rail of fence which made welding a breeze. Use a lot of lubrication as the bits heat up rapidly, I used 4 hole saws cutting 48 pipes but I was using cutting oil instead of the recommended wax. All in all worked great. Only concern is the rotating shaft has a bit of play so keeping the drill at 90 degrees was a chore with that size wall thickness... Great product, definitely will recommend to others. Thank you.

  • 5

    Heavy duty well built and designed. As good as…

    Posted by Vern H. on Feb 1st 2019

    Heavy duty, well built and designed. As good as notchers twice the price.

  • 5

    After days of comparisons I decided to get this…

    Posted by Steven H. on Nov 8th 2018

    After days of comparisons I decided to get this notcher from Arczone. I love it, it does everything. Pick your setup and cut, half tube notching, no problem. Odd angles in a bend, like butter. Buy it !!!!

  • 5

    This is a quality product but what makes it stand…

    Posted by Kenneth L. on Aug 27th 2018

    This is a quality product, but what makes it stand out from all the other pipe notchers out there is the ability to notch square,rectangle, or even flat stock. For me this was a big selling point.

  • 5

    Amazing product... the quality is awesome... I…

    Posted by Josh L. on May 14th 2018

    Amazing product... the quality is awesome... I would highly recommend arc-zone.
