6" to 25" 3 Jaw Chucks (Choose Size From Options Above)

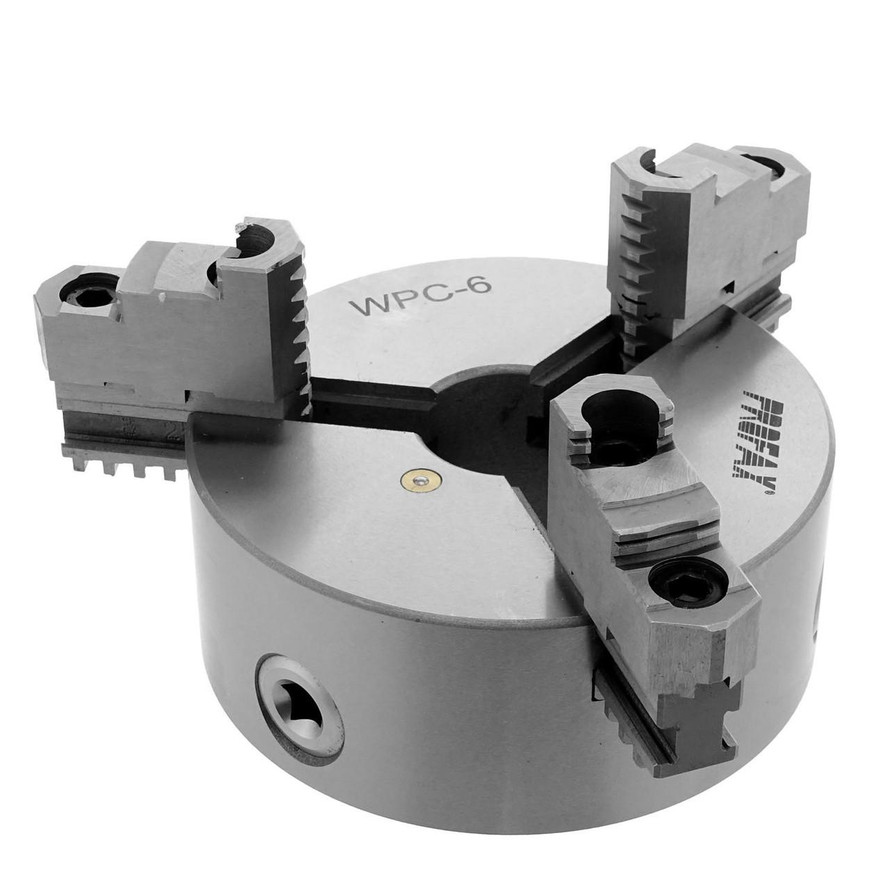

PROFAX® 3-Jaw welding chucks designed for use with the WP-Series Welding Positioners.

Low profile, self centering design allows for easy mounting of work piece.

Reversible jaws and external/internal gripping locks work piece in place for rotation.

Specifications:

Part Number Diameter Internal
Clamping Range
External
Clamping Range
Weight Fits Welding Positioner
PX-WPC-6 6.25" (158mm) 0.125" - 5.625"
(3.1mm) - (142mm)
2" - 6.25"
(50.8mm) - (158mm)
20 lbs
(9.1kg)
PX-WP-250
PX-WPC-12 12.5" (317mm) 0.5" - 12.375"
(12.7mm) - (314mm)
3.75" - 12.375"
(95.2mm) - (314mm)
104 lbs
(47kg)
PX-WP-500 / PX-WP-1000
PX-WPC-16 15.7" (399mm) 0.625" - 15.75"
(15.9mm) - (400mm)
4.75" - 15.75"
(120mm) - (400mm)
166 lbs
(75kg)
PX-WP-500 / PX-WP-1000 / WP-2000
PX-WPC-20 19.6" (499mm) 1" - 19.625"
(25.4mm) - (198mm)
5.875" - 19.625"
(149mm) - (198mm)
258 lbs
(117kg)
PX-WP-1000 / WP-2000 / WP-6000
PX-WPC-25 24.7" (629mm) 2" - 24.75"
(50.8mm) - (628mm)
6.625" - 24.75"
(168mm) - (628mm)
460 lbs
(209kg)
WP-2000 / WP-6000

Review(1) Reviews

Write a Review
  • The welding positioner in it self is of fine…

    The welding positioner in it self is of fine quality, but the motor can not handle continuous operation after the 4 pass which includes tacking and set up. Motor is not sized right for the applications advertised.

    Clyde Long |   Sep 22nd 2014

6" - 25" 3 Jaw Chuck For WP Series Positioner

$235.00 - $4,990.00
