PROFAX® General Purpose Analog Welding Positioner
Designed for rotation of lighter work pieces.

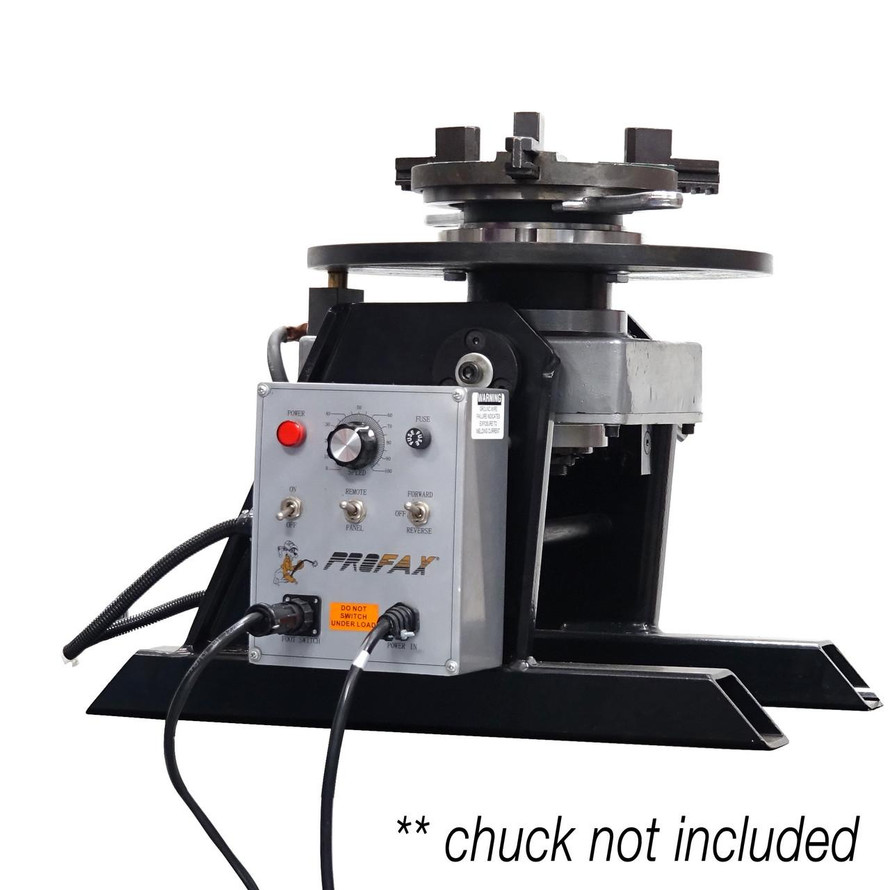

The PROFAX® WP-250 welding Positioner is a robust solution for consistent holding and rotating of parts in your welding workstation.
The WP-250 Positioner offers manual tilt adjustment, high frequency protection, and heavy-duty foot control switch.
The PROFAX® WP-250 Positioner will hold 440lbs. (2000kg) in the horizontal position, and 250 lbs. (113kg) in the vertical position.
Note: For maximum capacity, the COG (center of gravity) of work load should not be more than 4" (101.6mm) from the center of the turntable and 4" (101.6mm) from the face of the turntable.
Upgrade Your Positioner with these Accessories:
- PX-WPC-11 Speed Chuck, Low Profile w/ Large Handles
- PX-WPC-6 Traditional 3 Jaw Chuck w/ Chuck Key
- Purge Manifold Kit For Center Purging Through The Spindle / Chuck
- Articulated Arm Rest For Comfort, Speed & Semi-Automated Weld Quality
- Adjustable Wrist Rest For Comfort, Speed & Semi-Automated Weld Quality
Part # | PX-WP-250 | PX-WP-250-2 | ||
---|---|---|---|---|
Power Input | 110V 50/60Hz | 230V (Int'l Style) |
FREE SHIPPING WITHIN CONTINENTAL U.S.
* $75 CHARGE FOR LIFT GATE SERVICE FEE *
-

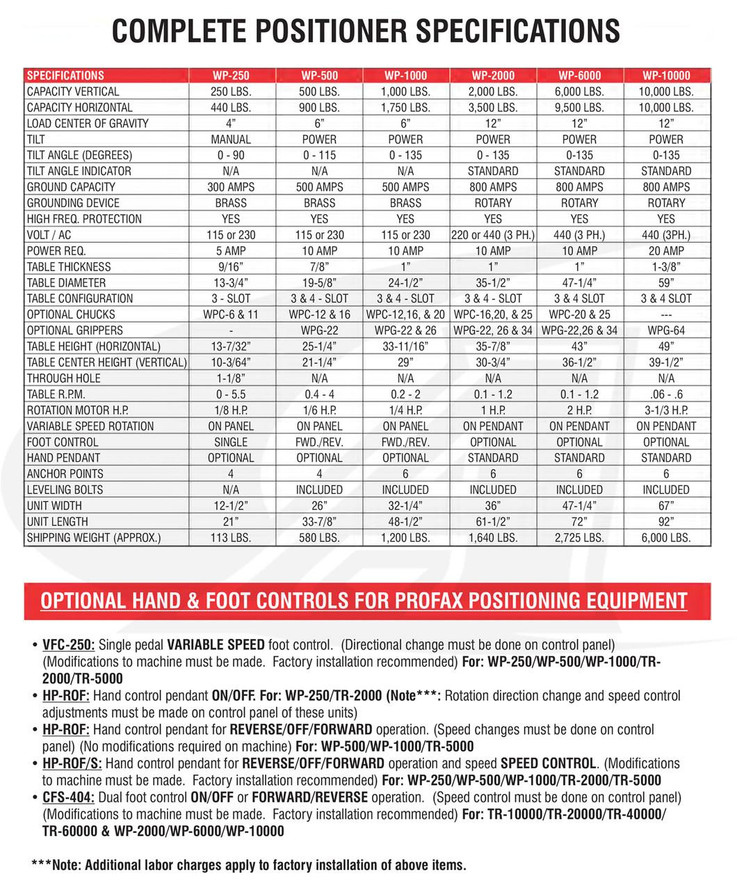

Specifications
Positioner -
Horizontal Capacity
440 lbs. (200kg) -
Vertical Capacity
250 lbs. (113kg) -
Rotation Speed
0 - 5.5 RPM -
Rated Eccentricity
4" (101mm) -
Table Diameter
13.75" (349mm) -
Spindle Thru-Hole
Yes -
Amperage Capacity
300 Amps -
Tilt Range
0 - 90° -
Positioner Dimensions
21" (533 mm) x 12.5" (318mm) x 13.2" (335mm) -
Width w/ Control Box
19.5" (496mm) -
Shipping Weight
113 lbs. (51kg) -
Specifications
Chuck (PX-WPC-11) -
I.D. Clamping
3" - 11" -
O.D. Clamping
0" - 8" -
O.D. of Chuck Body
7-7/8" (16-1/4" w/ Handles) -
Clamping Style
Speed Chuck -
Specifications
Chuck (PX-WPC-6) -
I.D. Clamping
2" - 6.25" -
O.D. Clamping
0" - 5.625" -
O.D. of Chuck Body
6.25" -
Clamping Style
T-Handle (included) -
Weight
20 lbs.
