Description

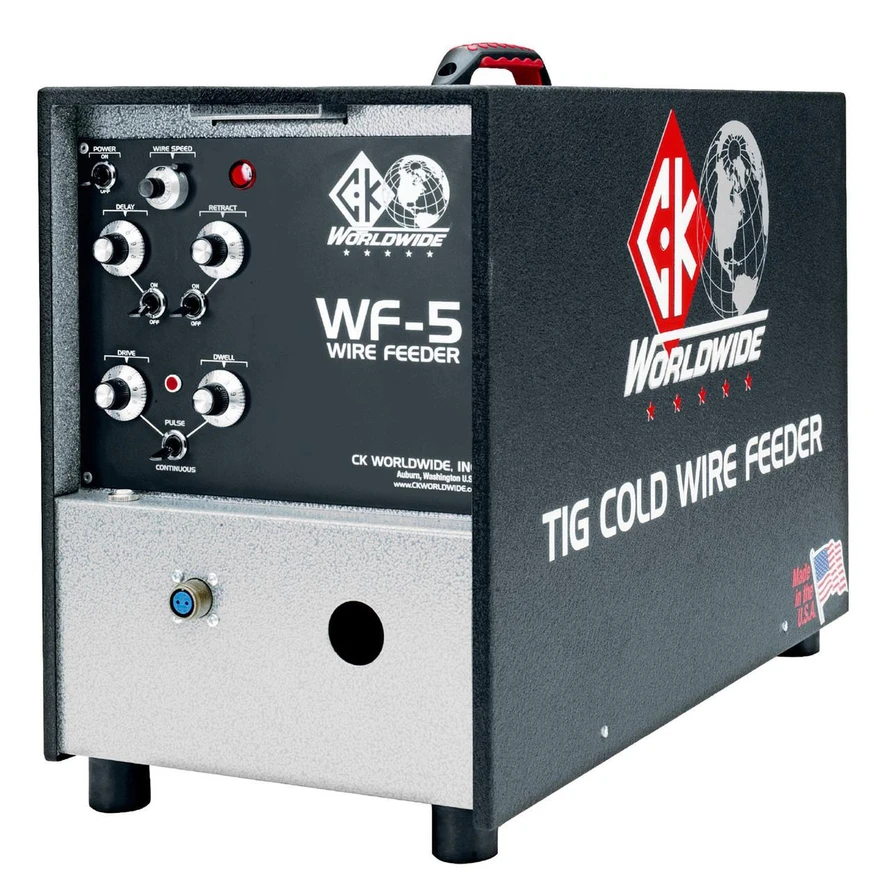

CK-WF-5
CK® Worldwide Premium Cold Wire Feed Machine. For a complete Cold Wire TIG System, you need both the Cold Wire Feeder and a TIG torch (hand held or machine mounted) with cold wire TIG capabilities. The Cold Wire TIG System works independently of a standard TIG power supply using normal TIG welding parameters.
The WF-5 feed unit has all the controls for automatic operation with CK "CWM" series machine mounted machine torches.
Additional controls include ON/OFF switches and timer controls for delay wire start and wire retract.
TIG/GTAW Cold Wire Feed Benefits:
- Automates adding of filler metal in TIG Welding.
- All weld parameters can be duplicated.
- Dual Groove Drive Roll system accepts multiple wire sizes.
- Eliminates TIG rod stub loss.
- Cabinet keeps filler wire clean.
- Makes fully automatic machine TIG welding possible.
- Results are consistent and high quality welds
Note: Choose the Drive Roll Wire Size from the Drop-Down Menu Below--
Specifications:
| Power | 115V AC* Single phase, 50/60 hz |
|---|---|
| Height | 15" (38.1cm) |
| Width | 10" (25.4cm) |
| Length | 21" (53.3cm) |
| Weight | 39lbs. (17.7kg) |
| Motor Type | DC Permanent Magnet |
| Motor Rating | 1/3 hp @4000 rpm |
| Filler Wire Spool Size | 12" (30.5cm) |
| Filler Wire Size | .023 (.5mm), .030 (.8mm), .035" (.9mm), .045" (1.1mm) and 1/16" (1.6mm) |
| Wire Speed Range | 0 - 500 ipm (0 - 1250 cm) |
| Feed Time (pulsed mode) | Continuously variable) |
| Dwell Time (pulsed mode) | Continuously variable) |
| WF-5 Only: Delay Start Time | (continuous mode) Continuously variable |
| WF-5 Only: Wire Retract Time | (continuous mode) Continuously variable |
*220V AC 50hz EU motor available - (specify when ordering)
