ProArc® 220lb Capacity High Speed Positioner - Build to Order

(1 review) Write a Review
MPN:
PT-103A
Minimum Purchase:
1 unit
$2,289.00 - $2,870.00

Description

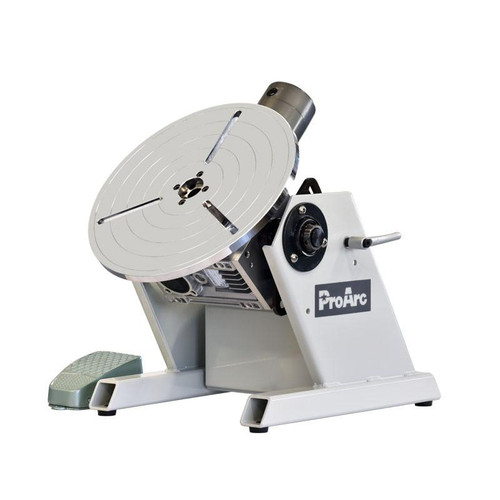

ProArc® Light Duty, High Speed Positioner

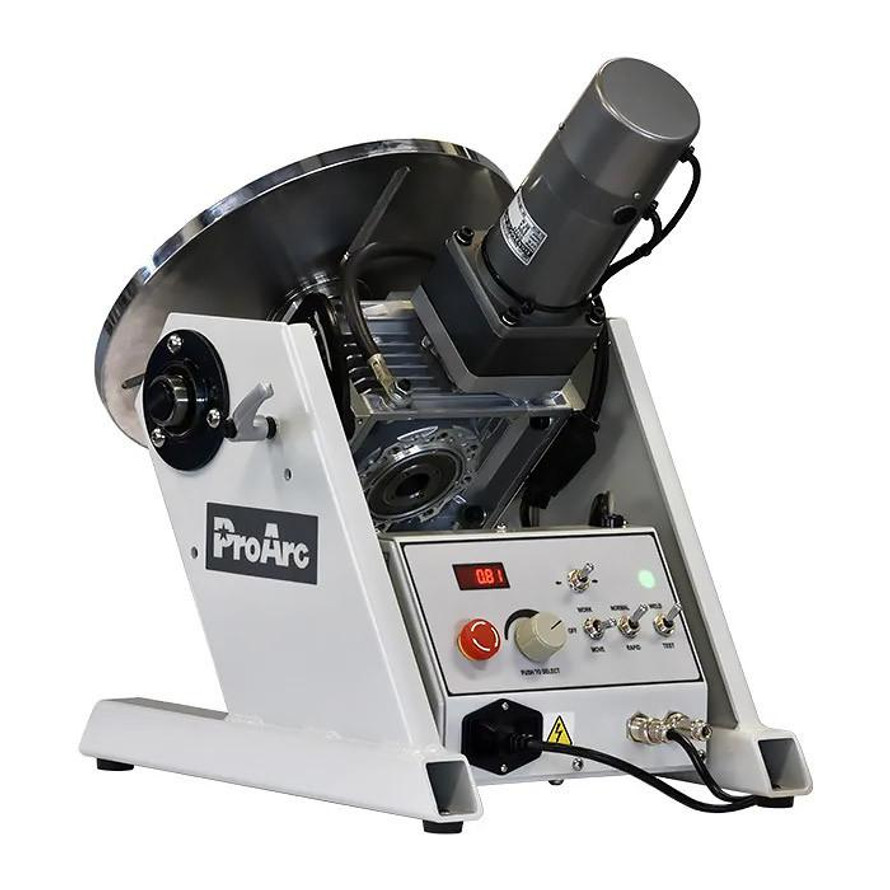

ProArc® Light-Duty Welding Positioner, designed for high speed rotation of lighter work pieces. The ProArc® PT-100 Series welding positioners provide a robust solution for your automated or benchtop welding applications. The positioner offers easy table angle adjustment with locking screw, and can be integrated with the DIY Automation Kits to build a custom welding station. Includes On/Off Foot Control, control box (select between analog or digital), high performance grounding lead, emergency stop button, and a two year warranty.

Specifications:

  UPA-PT-103 (A, B, C, D) UPA-PT-104 (A, B, C, D)
Rotation Speed (rpm) A: 0.3 - 4 B: 0.6 - 8 C: 0.8-12 D: 1 - 16
Rated Eccentricity 7" (180mm) 3.5" (90mm) 2.4" (60mm) 1.75" (45mm)
Display Analog Digital
Horizontal Capacity 220 lbs. (100kg)
Vertical Capacity 130 lbs. (60kg)
Power Input 110V 50/60Hz
Table Diameter 12.5" (320mm)
Spindle Thru-Hole 0.87" (22mm)
Amperage Capacity 200A @ 100% Duty Cycle, 300A @ 40%
Tilt Range 0 - 120°
Welding Timer 0 - 60 Seconds

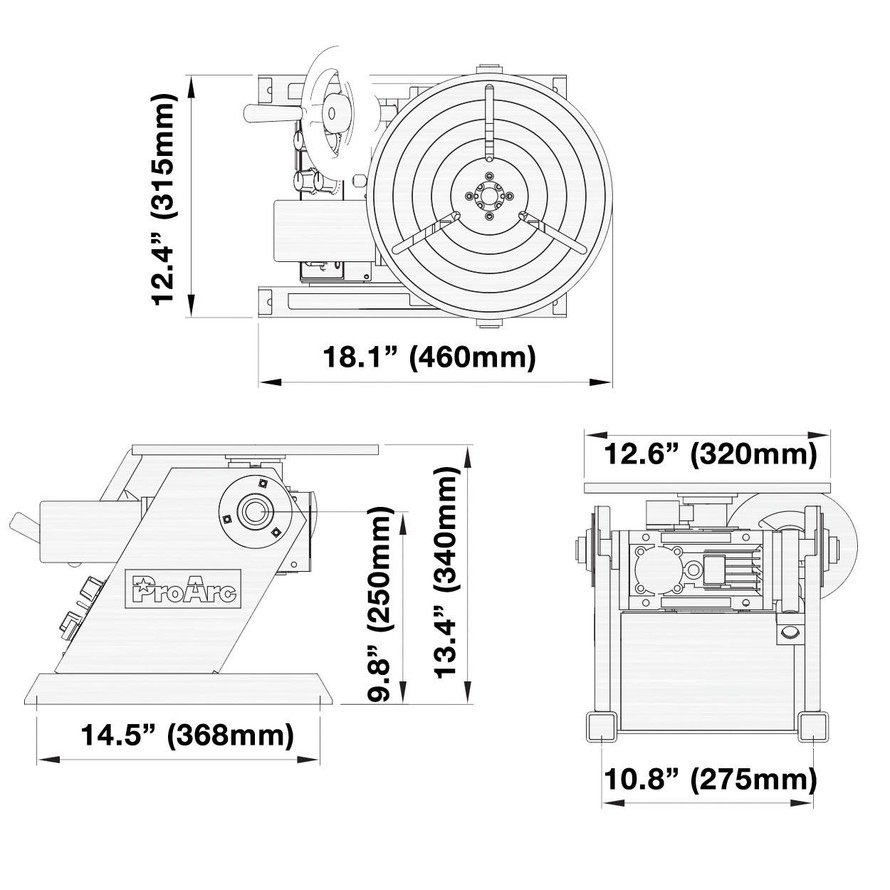

Positioner Dimensions (L, W, H) 18.1" (460 mm) x 12.4" (315mm) x 13.4" (340mm)
Center to Floor 9.8" (250mm)
Weight 84 lbs. (38kg)

This welding positioner ships on a standard size pallet by freight and is not available for shipping through UPS Ground or similar services.

They can be shipped collect with your own carrier, or an Arc-Zone Customer Care Representative will be happy to provide a shipping quote.
