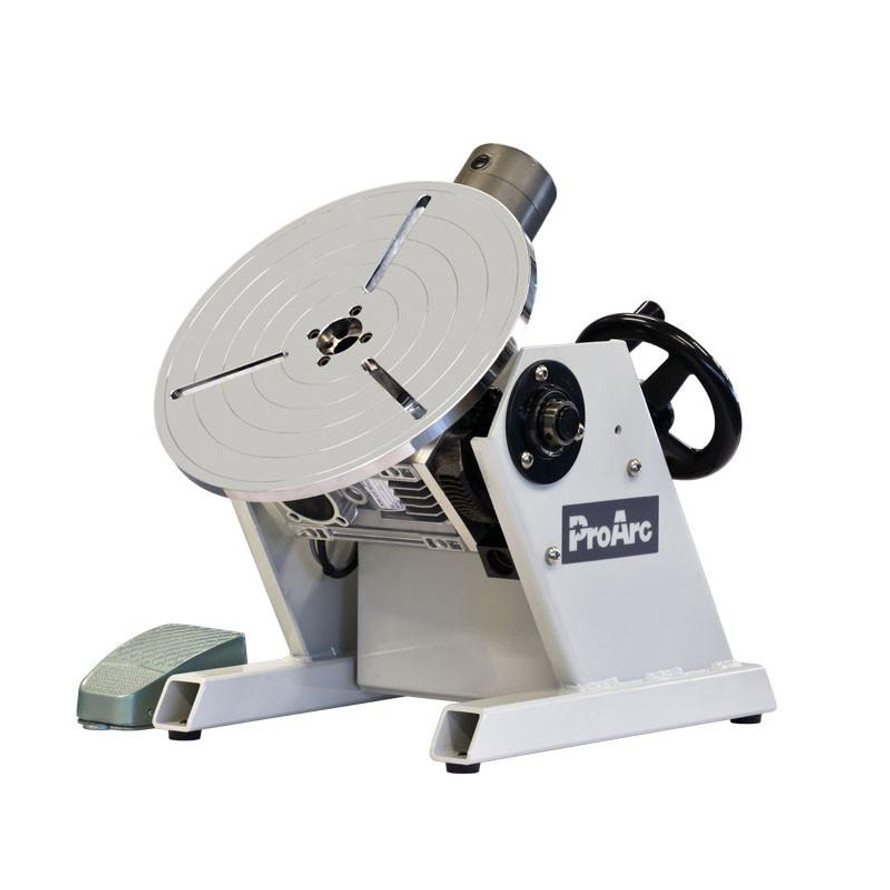

ProArc® Light Duty, High Speed Positioner

ProArc® Light-Duty Welding Positioner, designed for high speed rotation of lighter work pieces. The ProArc® PT-200 Series welding positioners provide a robust solution for your automated or benchtop welding applications. The positioner offers easy table angle adjustment with locking screw, and can be integrated with the DIY Automation Kits to build a custom welding station. Includes On/Off Foot Control, control box (select between analog or digital), high performance grounding lead, emergency stop button, and a two year warranty.

Specifications:

  UPA-PT-203 (A, B, C, D) UPA-PT-204 (A, B, C, D)
Rotation Speed (rpm) A: 0.3 - 4 B: 0.6 - 8 C: 0.8-12 D: 1 - 16
Rated Eccentricity 3.3" (84mm) 1.7" (42mm) 1.1" (28mm) 0.4" (10mm)
Display Analog Digital

This welding positioner ships on a standard size pallet by freight and is not available for shipping through UPS Ground or similar services. They can be shipped collect with your own carrier, or an Arc-Zone Customer Care Representative will be happy to provide a shipping quote.

  • Horizontal Capacity

    440 lbs. (200kg)
  • Vertical Capacity

    286 lbs. (130kg)
  • Power Input

    110V 50/60Hz
  • Table Diameter

    12.5" (320mm)
  • Spindle Thru-Hole

    0.87" (22mm)
  • Amperage Capacity

    200A @ 100% Duty Cycle, 300A @ 40%
  • Tilt Range

    0 - 120°
  • Welding Timer

    0 - 60 Seconds
  • Positioner Dimensions (L, W, H)

    18.1" (460 mm) x 12.4" (315mm) x 13.4" (340mm)
  • Center to Floor

    9.8" (250mm)
  • Weight

    92.6 lbs. (42kg)
