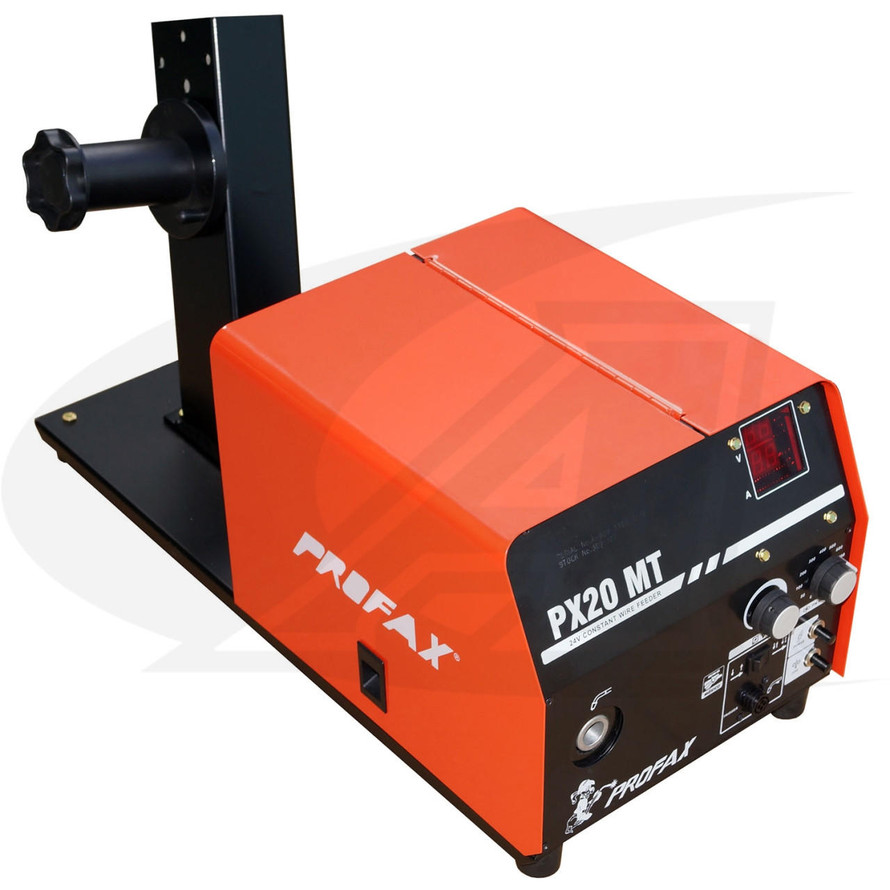

MIG Wire Feeder (Select Model From Options Above)
PX-20T & PX-20MT: Standard Features
- Trigger hold (reduces operator fatigue on longer welds)
- Two (2) gear driven rolls with Tool-Less roll change (uses common Miller® style drive rolls)
- .035"/.045" solid wire drive rolls included
- Accepts Miller® style MIG gun connection
- 10' (3m) input cable with 14 pin Miller® style plug included
- 10' (3m) gas hose included
- Wire jog button
- Gas purge button
- Adjustable burn back control
PX-20MT Exclusive Features:
- Voltage & Amperage Meters. Note: Must be paired with a machine capable of providing meter reference signals.
- Power Source Voltage Control. Note: Must be paired with a machine with this capability.
Feeder Specifications:
| Part # | PX-20T | PX-20MT |
|---|---|---|
| Voltage/Amp Meters | No | Yes |
| Power Source Voltage Control | No | Yes |
| Power Source Type | Constant Voltage (CV) DC | |
| Weld Circuit Rating | 500A @ 100V, 100% Duty Cycle | |
| Input Power | 24VAC 50/60Hz | |
| Wire Diameters | .023" - 5/64" (0.6 - 2.0mm) | |
| Wire Feed Speed | 75 - 900 IPM (1.9 - 23 m/min) | |
| Gas Inlet | 5/8"-18RH Female | |
| Height | 14" (356mm) | |
| Width | 11" (280mm) | |
| Depth | 25.5" (648mm) | |
| Weight | 36 lbs. (16.5kg) | |
Specifications
View AllCloseAdditional Information
|
Weld Type:
|
MIG
|
|
Category:
|
Assembly Replacement Parts
|
|
Part Type:
|
Wire Feeders
|
