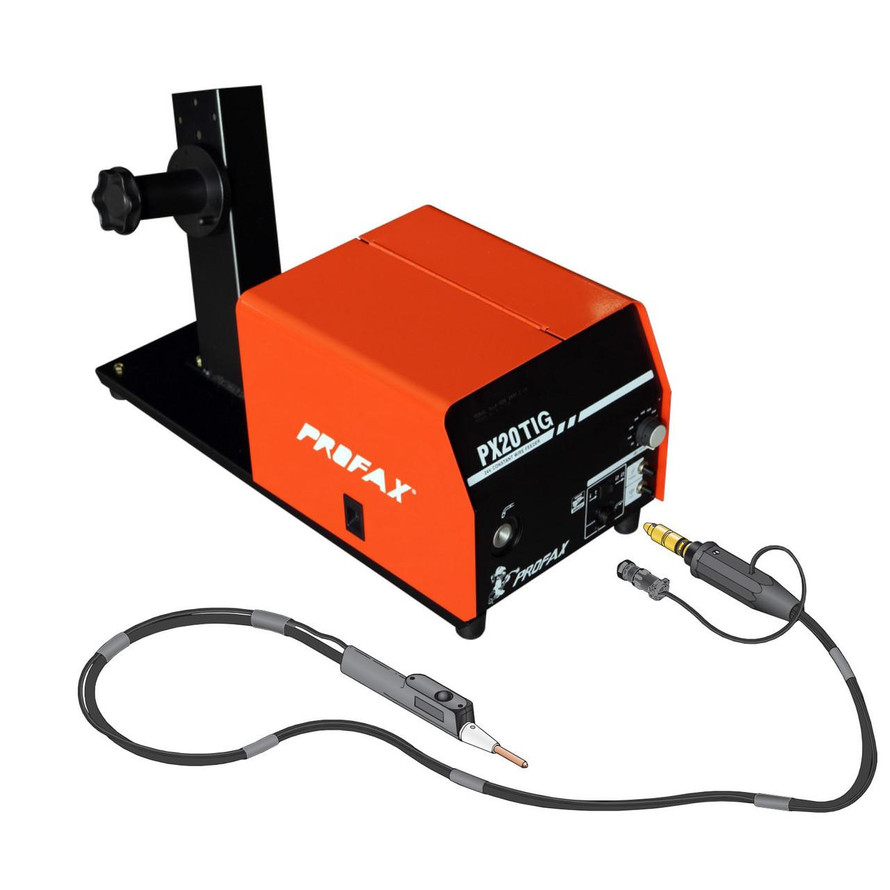

PROFAX® PX-20 TIG Cold Wire Feeder

PROFAX® Cold Wire Feeder

The New PROFAX® PX-20TIG Cold Wire feeder is a practical, low cost, high efficiency system designed to deliver spooled filler metal for TIG (GTAW) applications. Robust design with insulated wire drive assembly isolates all electrical components from high frequency interference.

Features:

Improves productivity by eliminating stops & Starts caused by cut length wire
Eliminates stub end waste of cut length filler metal, an average savings of 10-20%
Low operating cost -- utilizes standard feed tips, standard liners, and standard momentary switch on feed pen

Includes:

PX-20TIG Wire Feed Machine
Feed pen w/ 8' (2.4m) lead
Drive rolls
Power cord w/ plug for 110VAC (EU style 240 V available
Two gear driven rolls with tool-less roll change (uses Miller® style drive rolls)
Standard 12" (305mm) diameter spools
3 Year Warranty

Specifications:

Part #	PX-20TIG
Input Power	110VAC (50/60Hz)
Wire Diameters	.023" (0.6mm) - 5/64" (2.0mm)
Wire Feed Speed	75 - 900 IPM (1.9 - 23 m/min)
Height	14" (356mm)
Width	11" (280mm)
Depth	25.5" (648mm)
Weight	36 lbs. (16.5kg)
