PowerArc 161STH

The PowerARC 161STH is a compact, versatile DC stick and TIG welder offering the features you need without unnecessary complexity. It improves on the popular PowerARC 160STH with upgraded performance for both stick and TIG welding.

Key enhancements include 6010/Cellulose capability for pipeline and repair work, VRD for safety, and adjustable arc force and hot start for tailored stick welding.

For TIG, the unit offers HF start, Lift start, Live Lift for touch-free operation, preflow and downslope controls, 2T/4T switch operation, and an easy-to-use pulse function with adjustable frequency.

Designed with user feedback, the PowerARC 161STH provides professional-grade functionality at an affordable price. Compare it to other models, and you'll find it hard to match its value and performance.

Features:

Stable, smooth DC arc
Digital IGBT inverter
Low power consumption
Complete Stick/TIG welding package with carry case
Adjustable hot start for improved arc striking
Adjustable arc force control
VRD and Anti-Stick feature for Stick safety
120V/240V Dual Voltage
Optional 22k Ohm foot pedal for TIG
Adjustable pre/post flow and downslope control for TIG
Pulse for TIG
10-160 amps operating range (240V)
HF Start TIG with automatic gas flow solenoid.

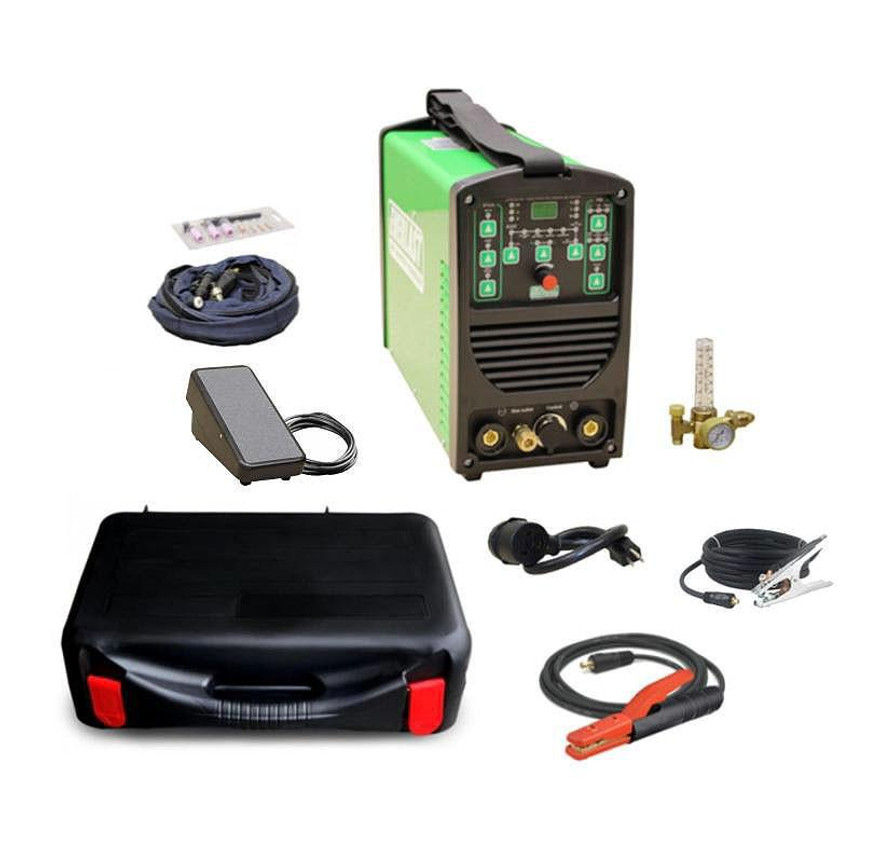

Comes Complete With:

17 series Air-Cooled TIG torch with 12.5 ft. cables and 25 Dinse connector
Torch Switch for 2T/4T operation 12.5 ft. cable and 7 Pin Female plug
Power Pedal TIG Deluxe (22k) with 20 ft. cable 7 Pin Female plug
Stick Electrode Holder with 10 ft. cable and 25 Dinse connector
Ground Clamp with 10 ft. cable and 25 Dinse connector
Argon Regulator with Hose
Consumable Starter Kit (Tungsten not included)
Adapter 120V/240V
Impact resistant carry case

Recommended Areas of Use:

Home/Hobby garage
Maintenance shop
MotorSports/Off-Road
Fabrication/ Proto-typing
Portable Welding Repair
Automotive Repair

Recommended Metals:

Steel
Stainless
Chrome Moly
Cast Iron
Aluminum (Stick welding only)

Minimum/Maximum:

Stick:

120V:

Weld with a maximum of 3/32" diameter electrode (Maximum electrode diameter ultimately depends upon type and manufacturer)
Weld with a minimum of 1/16" diameter electrode

240V:

Weld with a maximum of 1/8" diameter electrode (Maximum electrode diameter ultimately depends upon type and manufacturer)
Weld with a minimum of 1/16" diameter electrode

TIG*

120V:

Minimum 28 gauge
Maximum 1/8" (Single Pass)- 1/4" (Multi-Pass, practical limit)

240V:

Minimum 28 gauge
Maximum 3/16" (Single Pass) -3/8" (Multi-Pass, practical limit)

*Unit is not intended for use with Aluminum or Magnesium

Notes:

1) Use only with generators that are certified as clean power (5% or less total harmonic distortion) by the generator manufacturer. Use with at least 3500 watt generator for 120V use, and a 6500 watt generator for 240V use. Damage to units caused by underrated, or "dirty" power generators is not covered under warranty.

2) This unit is DC output only in TIG and stick modes. It is not designed to weld Aluminum in TIG mode. In stick mode, it can be used to weld aluminum with special flux covered electrodes designed for aluminum welding.

3) This unit is suitable for E6010 electrodes and E6011. Use the E6010 setting for both.

4) Foot Pedal optional. Any Everlast non-MTS 22k ohm pedals will fit except NOVA.

5) Specifications and accessories subject to change without notice.

6) Because this is a basic entry level unit, to accurately adjust maximum TIG amps, the adjustment to amperage must be made before the pedal is plugged in. Adjustment can be made, but will not reflect in digital display.

*Free Shipping* Within The Contiguous United States. For International Shipments, Customer Pays All Shipping, Taxes, and Fees.

Specifications:

Part #	EVL-PA-161STH
IGBT Type	Individual IGBT
Inverter Type	Digital/Micro-controlled
Output Type	DC Stick, DC TIG
Voltage/Phase:	DUAL VOLTAGE 120/240 1 PHASE
Max Rated TIG Amps	@ 120V: 90A @240V: 160A
Max Rated Stick Amps	@ 120V: 90A @ 240V: 160A
TIG Amps @ Rated Duty Cycle	240V: 160A/16.4V @ 35% Duty Cycle/ 40º C 130A/15.2V @ 60% Duty Cycle/ 40º C 100A/14V @ 100% Duty Cycle/ 40º C 120V: 90A/13.6V @ 35% Duty Cycle/ 40º C 70A/12.8V @ 60% Duty Cycle/ 40º C 55A/12.2V @ 100% Duty Cycle/ 40º C @ 60% Duty Cycle/ 40º C 55A/12.2V @ 100% Duty Cycle/ 40º C
Stick Amps @ Rated Duty Cycle	240V: 160A/26.4V @ 35% Duty Cycle/ 40º C 130A/25.2V @ 60% Duty Cycle/ 40º C 100A/24V @ 100% Duty Cycle/ 40º C 120V: 90A/23.6V @ 35% Duty Cycle/ 40º C 70A/22.8V @ 60% Duty Cycle/ 40º C 55A/22.2V @ 100% Duty Cycle/ 40º C
Max Inrush ( I1MAX ) Amps	120V: 29.7A 240V: 28.8A
Maximum Rated (I1EFF ) Input Amps	120V: 18A 220V: 17A
OCV	Stick: 70V TIG: 70V
TIG Output Range DC	120V: 10A-90A/ 10.2V-13.6V 240V: 10A-160A/ 10.2V-16.4V
Stick Ouput Range DC	120V: 10A-90A/ 20.2V-23.6V 240V: 10A-160A/ 20.6V-26.4V
Stick Hot Start Amps	0-100%
Stick Function	Adjustable Arc Force Control
Stick Hot Start Type	Adjustable Hot Start
Stick Hot Start Time	0-2 Seconds
6010/Cellulose Capable	Yes
Minimum Amp DC TIG Start	10A
TIG Start Type	High Frequency Lift TIG Live Lift
Memory	No
Down Slope Time	0-10 Seconds
Preflow time	0-25S
Post Flow Time	0-25S
TIG Pulse	Yes
Standard DC Pulse Frequency	Adjustable 0.1-250Hz
Pulse Time On (Duty Cycle)	Preset
Pulse Amp Range	Preset
Remote Control	2T/4T
Foot Pedal	Optional
Weight	17 lbs
Dimensions (LxWxH)	17 in x 7 in x 11 in
