Description

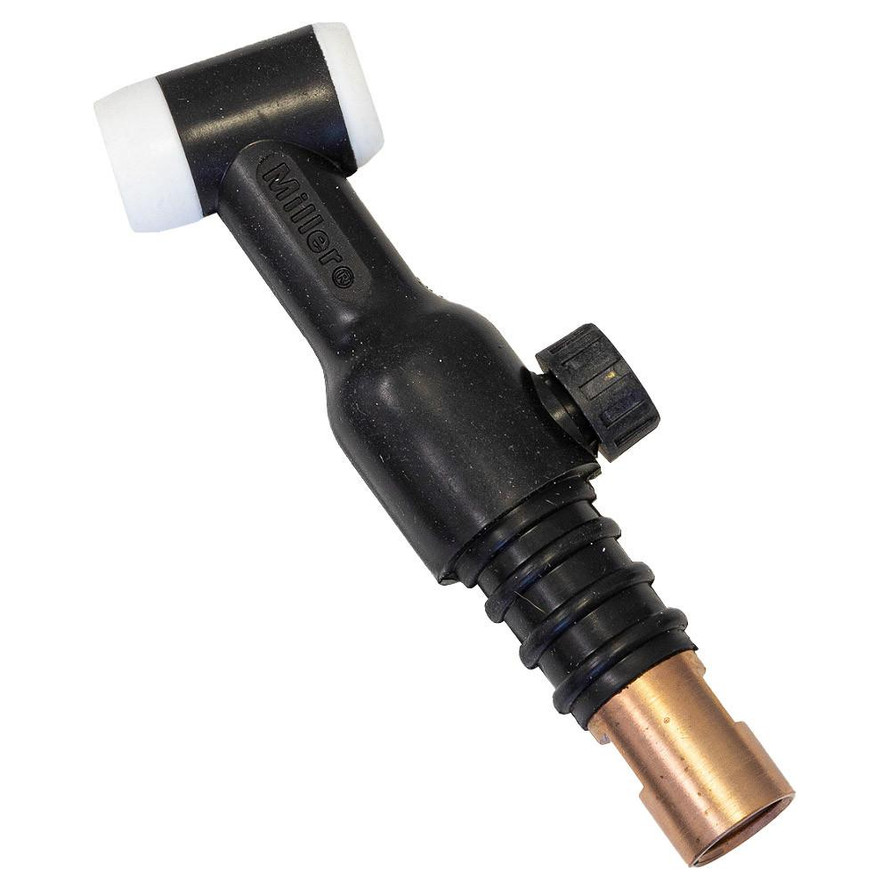

A-200 Valve (WP-26V)
General purpose 200 Amp Air-Cooled TIG Torch Body With Rigid 70º Head and built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The WP-26V is a well-balanced, general use torch body. Torch package includes Single-Piece, Heavy-Duty Rubber Cable.
| Specifications: | A-200 Valve (WP-26V) | ||
|---|---|---|---|
| Amperage | 200A DCSP, 150A ACHF @ 60% Duty Cycle | ||
| Air-Cooled body | 70º Rigid Head | ||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | ||
| Head size | 3 Series | ||
| Torch body weight | 10 oz. (283.4g) | ||
| Handle diameter | 1-1/4" (31.7mm) | ||
| Power Connection | Torch: 5/8"-18RH Male | Machine: 7/8"-14RH Male | |
| Part # | WP-26V | WP-26V-HDL | WP-26V-25-R |
| Handle | N/A | 10N15R | 10N15R |
| Cable Type | N/A | N/A | One-Piece |
| Cable Length | N/A | N/A | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
26 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
