Cast Clamping Squares for Siegmund System 28 Tables

Cast Clamping Squares (Select Size From Drop Down Menu Above)

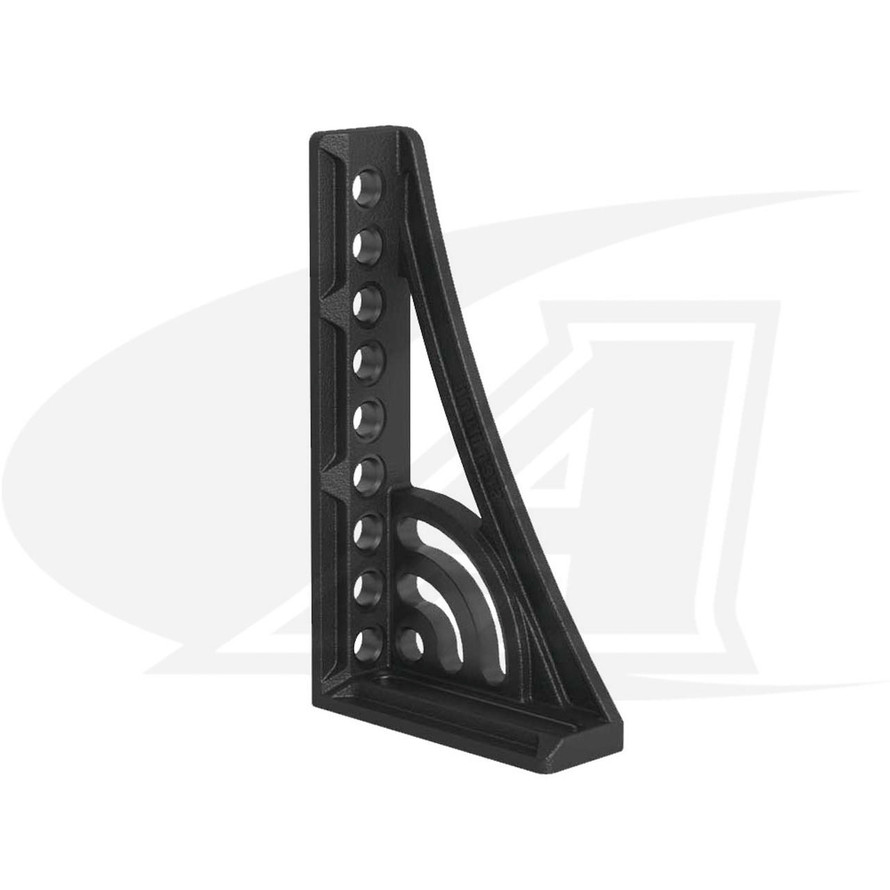

Cast Stop and Clamping Squares are manufactured from high quality ductile cast iron. Their larger size and more robust construction allows them to stop larger parts and bear heavier loads when used as a table extension. Their cast construction means greater precision while cut outs are optimized for lighter weight and easier handling. New clamping squares with rotation slots provide more ways to create angled fixtures.

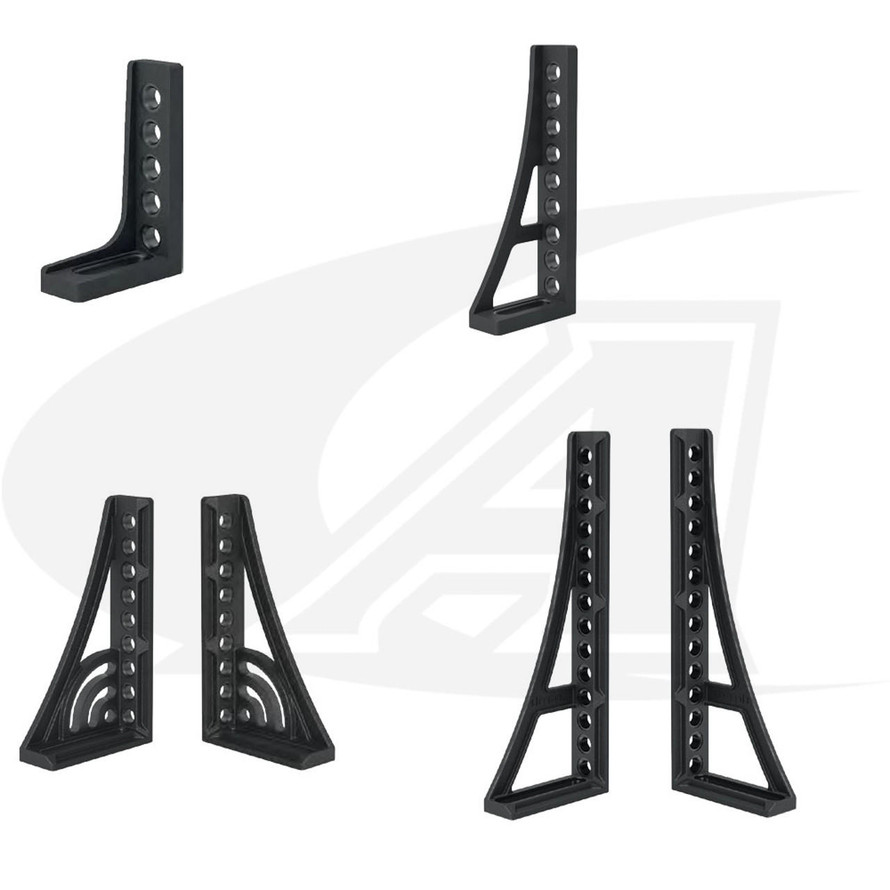

Some squares come in two versions with stops on either the left or right side.

Part Number	Name	Orientation	L x W x H	Thickness	Weight
SHT-S2-280152	300 G	Left-Hand	200mm x 75mm x 300mm (7.9" x 2.9" x 11.8")	27mm (1.1")	6.0kg (13.2lbs)
SHT-S2-280162	500G	Left-Hand	200mm x 75mm x 500mm (7.9" x 2.9" x 19.7")	27mm (1.1")	9.4kg (20.7lbs)
SHT-S2-280164	500 G W/ Rotation Slot	Left-Hand	276mm x 95mm x 500mm (10.9" x 3.7" x 19.7")	27mm (1.1")	11.5kg (25.4lbs)
SHT-S2-280165	500 G W/ Rotation Slot	Right-Hand	276mm x 95mm x 500mm (10.9" x 3.7" x 19.7")	27mm (1.1")	11.5kg (25.4lbs)
SHT-S2-280166-P	750 G (Nitrided)	Left-Hand	276mm x 85mm x 750mm (10.9" x 3.3" x 29.5")	27mm (1.1")	13.6kg (30.0lbs)
SHT-S2-280167-P	750 G (Nitrided)	Right-Hand	276mm x 85mm x 750mm (10.9" x 3.3" x 29.5")	27mm (1.1")	13.6kg (30.0lbs)
