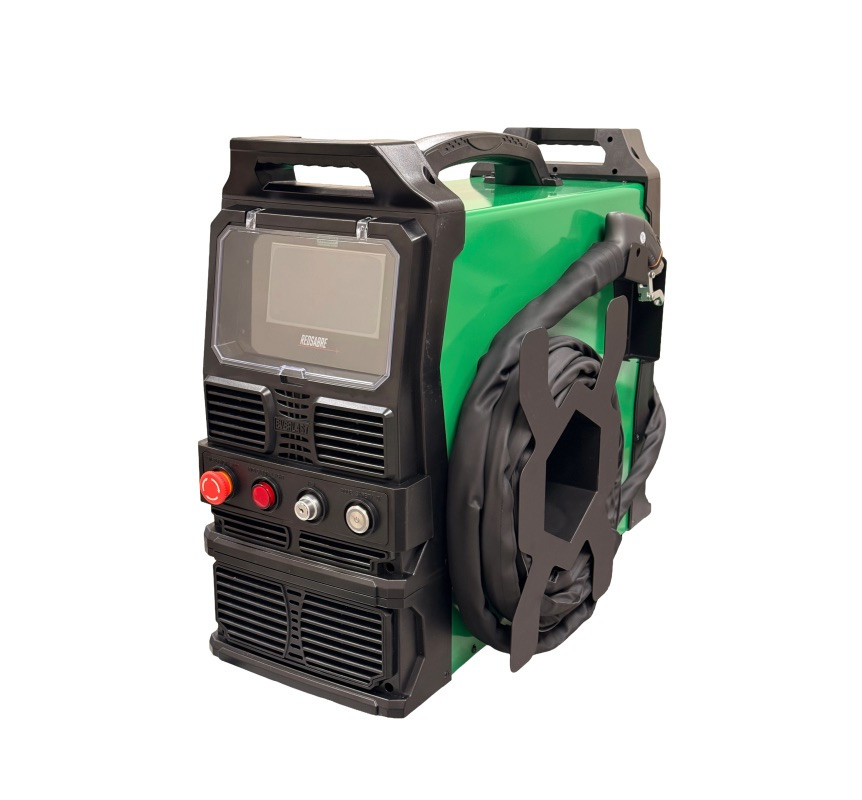

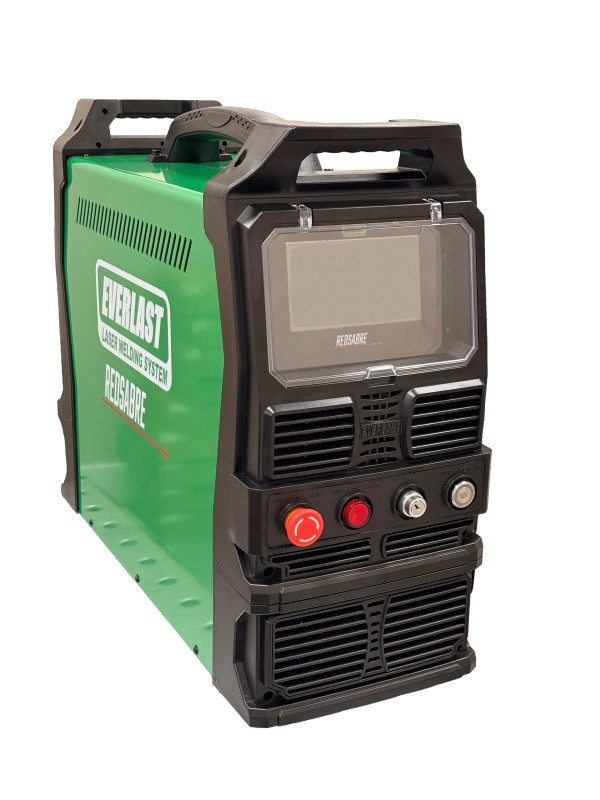

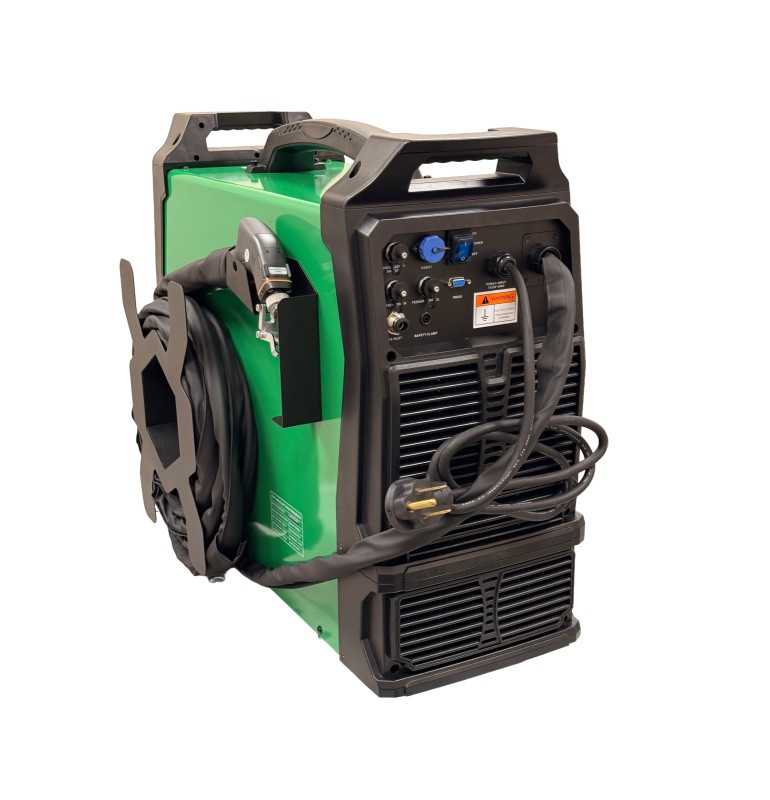

RedSabre 1500 - Lightweight, Portable 1500 Watt Fiber Laser Welder

RedSabre 1500

The new RedSabre 1500 is a 1500 Watt, air cooled portable laser welder designed for compact size and portability. The air cooled design of the RedSabre is new and innovative way to cool lasers without heavy, large water cooling systems.

Many Fiber lasers in this wattage range are heavy water-cooled lasers weighing 600 lbs or more. The high volume fan and high temperature diode design of the RedSabre1500 reduces the foot print of the welder.

The ergonomic gun SUP21T gun design and safety features are hallmarks of the RedSabre model line.

This model can Weld, Cut, and descale rust and paint.

Includes detachable touch screen color LCD controls and synchronizing wire feeder.

For manual use only. Not intended for automatic or computer controlled applications.

Features:

Optical Pump Powered by RLASER
240V 1phase 50/60Hz Input
Class 4 Laser
3500W Rated Input
1500 Watt Fiber Laser
Air-Cooled Design
Maximum Weld Mild/Stainless Steel: 5/32" (4mm)
Maximum Weld Aluminum: 1/8" (3.5mm)
Maximum Cut Mild/Stainless Steel: 3/16" (5mm)
Maximum Cut Aluminum: 5/32" (4mm)
Wire Feeder included
Can be used to create Autogenous welds
Gas Type: Argon or Nitrogen(N2)
Cut Gas: Air or Nitrogen (N2)
Gas Flow Rate for Welding 30 CFH
Travel speed up to 5 inches per second
Good Duty Cycle with a 6 Hour 100% rating at Max output
Travel speed up to 5 inches per second, depending upon thickness and settings
Weight: 181 lb

Comes Complete With:

Synchronizing Wire feeder attachment
SUP21T Laser Gun with 30 ft. cable
Starter Consumables Kit with nozzles for welding, cleaning and cutting
Spare D18T2 Protective Lens Kit: 5 pc
Spare D20T4.5 F800 Focus Lens
D20T4.5 F150 Focus Lens (installed)
Data Cable
Safety Goggles
Key

Recommended Metals:

All Types

Notice:

The operation of all Lasers in the USA falls under FDA restrictions, guidelines and general regulations. Additional OSHA and ANSI regulations and standards applicable to laser welding/cleaning/cutting use and applications exist.
This is a class 4 laser, the most dangerous category. Safety Training and special laser light shielding equipment is required to use lasers for any application. Laser light radiation can be harmful, even though the wave length is not visible to the naked eye.
Use safety glasses only matched to the wave length of this unit. Other Specialized safety equipment is also required Do not use standard cutting shades or welding helmets while using this equipment. Use only safety eye and face wear rated for 1080 nm wave lengths.
The purchase of this laser welder may require registration with your local and state governments. Please identify any registration issues and concerns before purchase. Please contact your local and state governing authorities before purchase to inquire about registering your laser welders. Everlast does not maintain a list for each state, nor lists of general requirements for registration.
The use of a laser in your business may require you to follow additional ANZI guidelines separate from the use of regular arc welders. It may also require special training and certifications that require additional investment and costs. In businesses with employees, you may be required to appoint a Laser Safety Officer with completed training and certification and additionally train individual operators and nearby individuals in laser safety and use.
Contact independent laser safety certification companies for details and pricing of training. Most companies offer online certification, with some offering in person training as well. Prices vary for certification.
Check with your insurance company to make sure that the use of a laser welder in your facility is covered if training and certifications are in place.

FDA Accession#: 2410134-000

FDA Product Code: 95R--FF
