Sharpie by Arc-Zone

Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°

(51 reviews) Write a Review
MPN:
A-PTGK-DXCL
Minimum Purchase:
1 unit
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
  • Sharpie by Arc-Zone Cordless Sharpie DX™ Tungsten Grinder Adjustable 15°- 45°
$377.00
  • Sharpie by Arc-Zone NEW - Sharpie™ Medium Grit Diamond Wheel (Blue Arbor Hole)
  •  ArcTime™ Premium Hybrid Tungsten - Variety Pack
  • Arc-Zone Pro Arc-Saber™ "Stubby" The Best Tungsten Storage Solution

Description

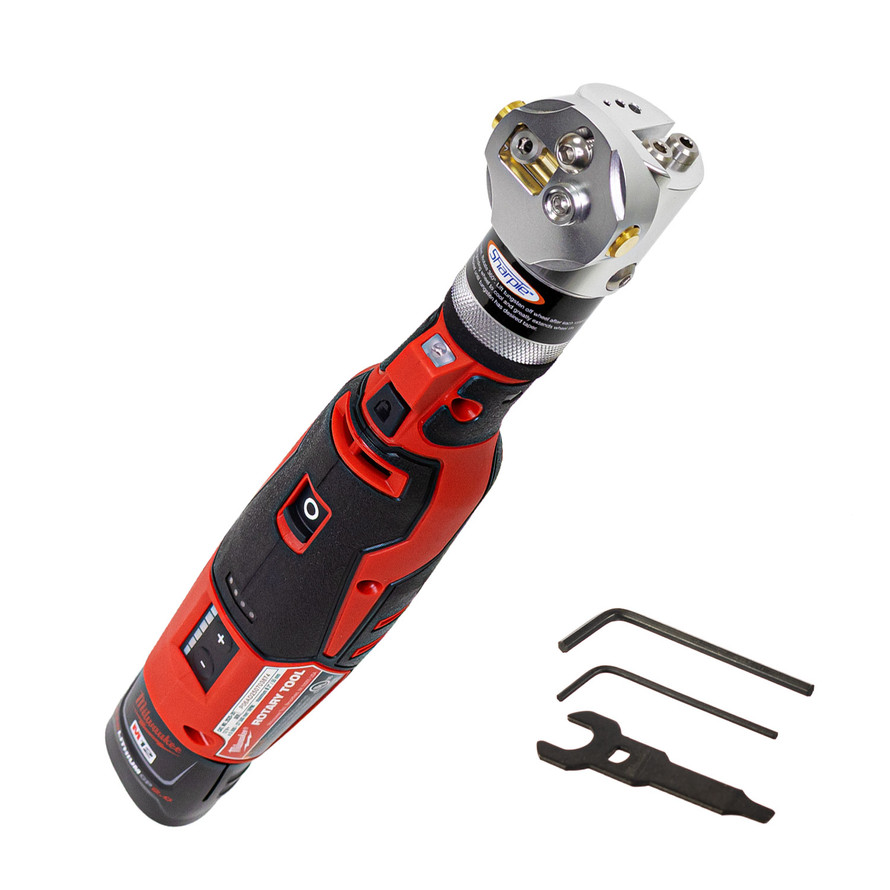

Cordless Sharpie DXCL™ Tungsten Grinder

Beautifully Built Machine That Delivers // Diamond Ground Tapers // Tip Flats // Cuts Tungsten
The Sharpie DXCL™ tungsten electrode grinder has an adjustable grind angle from 15° -to- 45° for virtually any TIG welding application. Sharpie™ grinders deliver quick and consistent electrode grinds for snappy arc starts, better puddle control and improved weld quality.

The machines double-sided diamond wheel easily grinds tungsten electrode sizes, .040" (1.0mm) (collet sold separately), 1/16" (1.6mm), 3/32" (2.4mm) & 1/8" (3.2mm).

We suggest using our Heavy-Duty wheel for continuous grinding of 1/8" (3.2mm) tungsten.

High Quality Tool:
You are investing in a quality product that will deliver years of service. Each Sharpie™ is built to demanding specifications, with the finest globally sourced Milwaukee M12 Cordless motor, industrial grade double-sided diamond wheels, and precsion machinded components.  The majority of machined parts are made in the USA and each machine is built by hand in our Vista California factory!

Build It Your Way™ with Anodized Head Colors (pick from options above)

Grinder Head & Base Face Plate Sample
UltraBright Silver UltraBright Silver Cordless Sharpie DX Tungsten Grinder Adjustable 15 to 45 degree schematic picture
Tungsten Grey Tungsten Grey
Black Ops Black Ops
Auburn Red Auburn Red



Upgrade to a Pro Kit & Save 35% on Popular Accessories:

Included Accessories DX Grinder Only DX Pro Kit
Part Number A-PTGK-DXCL A-PTGK-DXCL-K
DX Grinder (15°-45° Adjustable Grind Angle)

.040" (1.0mm) Collet -

1/16" (1.6mm) Collet

3/32" (2.4mm) Collet

1/8" (3.2mm) Collet

M12 Lithium-Ion Battery

M12 Lithium-Ion
Battery Charger

Replacement Grinding Wheel -

Arc-Saber Tungsten Storage Container -

Pro Series TIG Calculator -

1. Precise Diamond Ground Taper:
Sharpie grinders deliver quick and consistent adjustable grind angle from 15° -to- 45° for snappy arc starts, better puddle control and improved weld quality. The double-sided diamond wheel easily grinds tungsten electrode sizes, .040" (collet sold separately), 1/16", 3/32" - 1/8" (1.0mm, 1.6mm, 2.4mm & 3.2mm).

2. Tip Flat Option:
Tungsten electrodes ground to a sharp point are proven to burn off and cause inclusions in your weld. By Removing the point & adding a tip flat, you get better arc starts, longer electrode tip life & reduced weld contamination.

3. Cut-Off/Score Option:
The built-in cut-off or scoring option allows you to cut & remove only contaminated portions of the electrode. No more bending or breaking electrodes which causes splintering of the tungsten, reducing electrode performance.

Safe & Easy To Use:
Set your machine up for the job at hand & grind electrodes in the shop or in the field. Enclosed grinding wheel eliminates safety issues common with "side" or "wheel" grinders which can grab the electrode and shoot it back at the operator.

Save Time & Money:
Diamond ground electrodes reduce tungsten consumption and waste. Stop wearing out belts on your sander & grinding deep grooves in your bench grinder wheels. Your shop will be cleaner, safer and more productive. The reversible long-life diamond wheel means low replacement part costs.

Weld Like A Pro Tip
Frequently re-grinding worn electrode tips improves weld quality & lowers tungsten usage. Waiting until the tip is completely eroded or contaminated, requires grinding off more tungsten material, resulting in higher tungsten usage, costing you time & money.

Specifications:

Minimum Tungsten Grind Length 1-1/4” (31.7mm)
Adjustable Grind Angle From 15° - 45°
Voltage 12V
Charger Primary US 120V ~ 60 Hz 750 mA
Charger Secondary Output 12 V = 3.0 A
Motor Length 9" (229mm)
Motor Length w/ Head 11" (279mm)
Weight 0.9 lbs (0.4kg)
Charge Time 30 Minutes
No Load RPM 5,000-32,000

Learn More:

  • Sharpie Operation Manual: .pdf
  • Sharpie Replacement Parts List: .pdf
  • Tungsten Grinder Selector: .pdf
  • Grinding Tungsten: .pdf
  • Overview: .pdf

Hand-Held Tungsten Grinders with Anodized Head Colors, High-Capacity 4.0AH Batteries & 220V Chargers are Copyright © Arc-Zone.com Inc. All Rights Reserved.
View AllClose

Additional Information

Grinder Style:
Cordless
Grinder Style:
Hand-Held
Electrode Diameters:
.040" (1.0mm)
Electrode Diameters:
1/16"(1.6mm)
Electrode Diameters:
3/32"(2.4mm)
Cut-Off Option:
Notched Cut-Off
Special Features:
Enclosed Grinding Wheel
Electrode Diameters:
1/8" (3.2mm)
View AllClose

51 Reviews

  • 5

    Took a little time to get the adjustment correct.…

    Posted by Pedro L. on May 31st 2022

    Took a little time to get the adjustment correct. At first the finish on tungsten was rough. I figure out the diamond cutting blade was set to high. Now I have it dialed in. The Sharpie makes sharpening a breeze, with a smooth finish. If the tungsten finish isn’t coming out smooth. Make sure to make adjustments at the Diamond wheel at the arbor. My Diamond wheel had to be set closer to the motor. I highly Recommend the Sharpie.

  • 4

    The 1/16th collet is too large for a 1/16th…

    Posted by Brian H. on Feb 24th 2022

    The 1/16th" collet is too large for a 1/16th electrode to achieve consistant repeatable tungsten angles. I have not tried any of the other collets as of now.

  • 5

    Hiiii please i need the certificated of this hand…

    Posted by Geicenver S. on Feb 24th 2022

    Hiiii ,please ,i need the certificated of this hand held tungsten grifting graduable ,please this is the best of machina and i need of disc tungsten

  • 5

    I absolutely love it. Works great and does a very…

    Posted by Hayden R. on Feb 22nd 2022

    I absolutely love it. Works great and does a very good job in all aspects of the tool. The only thing I wish it had was markings so you know the angle of the tungsten grind. Other than that it has performed flawlessly and is a great product.

  • 5

    Super Fast Delivery And Product Was Just As…

    Posted by Gerald M. on Nov 30th 2021

    Super Fast Delivery And Product Was Just As Described

  • 5

    Great tool totally improved my grind quality with…

    Posted by Don W. on Sep 14th 2021

    Great tool, totally improved my grind quality with this tool & uses the same battery of many of my other tools. Great Job.

  • 5

    Solid cuts. If yoy tend to dip your tungsten…

    Posted by Ted S. on Aug 11th 2021

    Solid cuts. If yoy tend to dip your tungsten you’ll want to have this for sure!! It’s honestly like paying someone to do your homework (not really but yeah)

  • 5

    Super easy to use and gets the job done legit.…

    Posted by Arman A. on Jun 2nd 2021

    Super easy to use and gets the job done legit. Perfect for field work.

  • 4

    Works great. But call first for availability. I…

    Posted by anson q. on May 11th 2021

    Works great. But call first for availability. I ordered and took 3 weeks to come in maybe even 4. I called on the 2-3week and they said that it was out of stock

  • 5

    This little tool can only improve my welding.…

    Posted by Sean A. on Mar 24th 2021

    This little tool can only improve my welding. Previously if I got any contamination, I would 'soldier on' - knowing that stopping and resharpening was inevitable. Now it's such a breeze to resharpen, that it's just a no brainer. Also the customer service at Arc-Zone simply outstanding.
